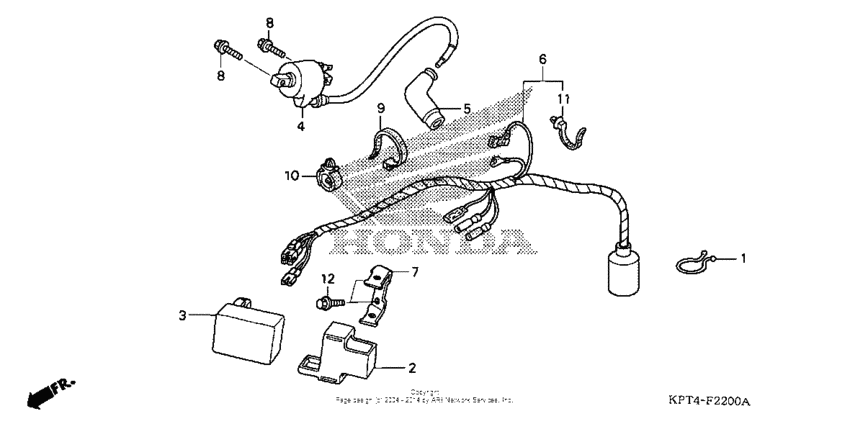

Wire harness (1) Diagram Honda CRF150 CRF150F
- Year
- 2004
- Model code
- CRF150F A
- Sales region
- USA
- Frame
- 9C2KE010*4R000001 - 9C2KE010*4R999999
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90602-SA7-931 ClampFUEL HOSE, 18.5MM |
90602-SA7-931 |
from US $2.66 |
||
|
2
|
2
30401-KPS-900 Cushion |
30401-KPS-900 |
from US $13.17 |
||
|
3
|
3
30410-KPT-901
Module, ign cont
|
30410-KPT-901 |
— | ||
|
4
|
4
30500-KR8-751 Coil assy.,igniti |
30500-KR8-751 |
from US $64.91 |
||
|
5
|
5
30700-KN4-A60 Cap assy. |
30700-KN4-A60 |
from US $23.53 |
||
| replacement | |||||
|
5
|
5
30700-KN4-A61 Cap assy. |
30700-KN4-A61 |
US $31.77 |
||
|
6
|
6
32100-KPT-900
Wire harness
|
32100-KPT-900 |
— | ||
|
7
|
7
50301-KPS-900 Stay, c.d.i. |
50301-KPS-900 |
US $6.66 |
||
|
8
|
8
96001-060-180-0 BoltFLANGE, 6X18 |
96001-060-180-0 |
from US $0.59 |
||
|
9
|
9
90620-SB2-003 BandWIRE HARNESS |
90620-SB2-003 |
from US $5.77 |
||
|
10
|
10
90684-ZA0-601 Clip, harness |
90684-ZA0-601 |
from US $1.64 |
||
|
11
|
11
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
12
|
12
96001-0600800 Bolt, flange (6x8) |
96001-0600800 |
from US $0.59 |
||
