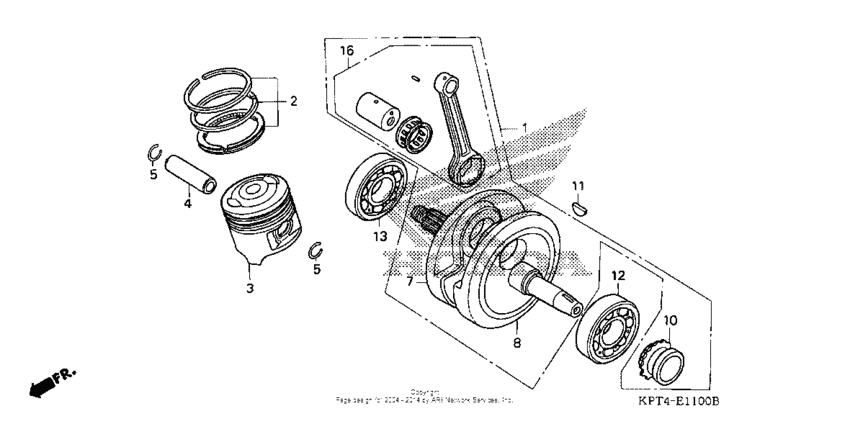

Crankshaft + piston (1) Diagram Honda CRF150 CRF150F
- Year
- 2005
- Model code
- CRF150F A
- Sales region
- USA
- Frame
- 9C2KE010*5R000001 - 9C2KE010*5R099999
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-KPT-900
Crankshaft
|
13000-KPT-900 |
— | ||
|
2
|
2
13011-KBB-305 Ring set (std) |
13011-KBB-305 |
from US $38.62 |
||
|
2
|
2
13021-KBB-305 Ring set (os 0.25)(Optional). |
13021-KBB-305 |
US $67.47 |
||
|
2
|
2
13031-KBB-305 Ring set (os 0.50)(Optional). |
13031-KBB-305 |
US $67.47 |
||
|
3
|
3
13101-KEH-900
Piston (std)
|
13101-KEH-900 |
— | ||
|
3
|
3
13102-KEH-305
Piston (os 0.25)
(Optional). |
13102-KEH-305 |
— | ||
|
3
|
3
13103-KEH-305
Piston (os 0.50)
(Optional). |
13103-KEH-305 |
— | ||
|
4
|
4
13111-440-000 Pin, piston |
13111-440-000 |
from US $13.62 |
||
|
5
|
5
13112-KPS-900 Clip (15mm) |
13112-KPS-900 |
US $1.05 |
||
|
7
|
7
13311-KPT-900 Crankshaft, r. |
13311-KPT-900 |
US $73.54 |
||
|
8
|
8
13321-KPT-900 Crankshaft, l |
13321-KPT-900 |
US $73.54 |
||
|
10
|
10
14311-KN6-931 Sprocket, timing |
14311-KN6-931 |
from US $22.30 |
||
|
11
|
11
90741-KFB-000 Key, woodruff (4mm) |
90741-KFB-000 |
from US $2.18 |
||
|
12
|
12
91001-KBW-941 Bearing (6207) |
91001-KBW-941 |
from US $16.73 |
||
| replacement | |||||
|
12
|
12
91001-HM8-003 Bearing (6207c3) |
91001-HM8-003 |
from US $15.08 |
||
|
13
|
13
91001-KCN-003 Bearing (28x72x18) |
91001-KCN-003 |
from US $19.18 |
||
| replacement | |||||
|
13
|
13
91001-KBR-003 Bearing (28x72x18) |
91001-KBR-003 |
from US $30.87 |
||
|
16
|
16
06381-KPT-900
Connecting rod kit
|
06381-KPT-900 |
— | ||
