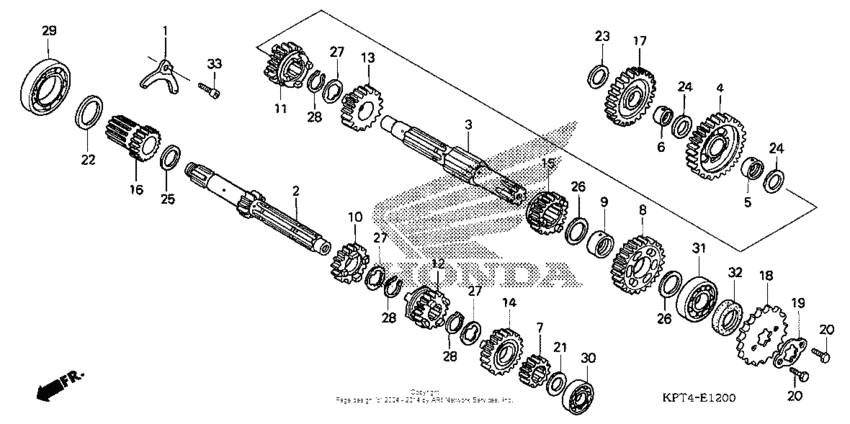

Transmission (1) Diagram Honda CRF150 CRF150F
- Year
- 2005
- Model code
- CRF150F A
- Sales region
- USA
- Frame
- 9C2KE010*5R000001 - 9C2KE010*5R099999
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11108-KHA-940 Plate |
11108-KHA-940 |
from US $14.36 |
||
|
2
|
2
23211-KPT-900 Mainshaft (13t) |
23211-KPT-900 |
US $90.54 |
||
|
3
|
3
23221-KPT-900 Countershaft, trans |
23221-KPT-900 |
US $126.34 |
||
|
4
|
4
23426-KPT-900 Gear (36t) |
23426-KPT-900 |
US $27.49 |
||
|
5
|
5
23427-KPS-900 Collar |
23427-KPS-900 |
US $15.28 |
||
| replacement | |||||
|
5
|
5
23427-439-000 Collar,c.low gear |
23427-439-000 |
from US $11.69 |
||
|
6
|
6
23431-KPT-900 Collar |
23431-KPT-900 |
US $11.93 |
||
|
7
|
7
23441-KPT-900 Gear (17t) |
23441-KPT-900 |
US $7.45 |
||
|
8
|
8
23451-KPT-900 Gear (32t) |
23451-KPT-900 |
US $29.05 |
||
|
9
|
9
23452-KW1-900 Bush (20x23x9) |
23452-KW1-900 |
from US $13.02 |
||
|
10
|
10
23461-KPT-900 Gear (20t) |
23461-KPT-900 |
US $60.84 |
||
|
11
|
11
23471-KPT-900 Gear (28t) |
23471-KPT-900 |
US $30.60 |
||
|
12
|
12
23481-KPT-900 Gear (21t) |
23481-KPT-900 |
US $30.18 |
||
|
13
|
13
23491-KPT-900 Gear (23t) |
23491-KPT-900 |
US $24.84 |
||
|
14
|
14
23501-KPT-900
Gear (26t)
|
23501-KPT-900 |
— | ||
|
15
|
15
23511-KPT-900 Gear (24t) |
23511-KPT-900 |
US $25.55 |
||
|
16
|
16
23520-KPT-900 Gear, starter (19t) |
23520-KPT-900 |
US $53.60 |
||
|
17
|
17
23531-KPT-900 Gear only (29t) |
23531-KPT-900 |
US $21.81 |
||
|
18
|
18
23801-KPS-900 Sprocket (13t) |
23801-KPS-900 |
US $29.95 |
||
|
19
|
19
23811-KPS-900 Plate a2, fixing |
23811-KPS-900 |
US $4.34 |
||
| replacement | |||||
|
19
|
19
23811-KR3-600 Plate a2, fixing |
23811-KR3-600 |
from US $3.26 |
||
|
19
|
19
23811-KR3-600 Plate a2, fixing |
23811-KR3-600 |
from US $3.26 |
||
|
20
|
20
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
21
|
21
90451-KPS-900 Washer (15mm) |
90451-KPS-900 |
US $1.94 |
||
|
22
|
22
90451-KPT-900 Washer (30x39x2) |
90451-KPT-900 |
US $2.52 |
||
|
23
|
23
90451-365-000 Washer (15mm) |
90451-365-000 |
from US $2.74 |
||
|
24
|
24
90452-KPT-900 Washer (16.5mm) |
90452-KPT-900 |
US $2.35 |
||
|
25
|
25
90453-KPT-900 Washer a (20mm) |
90453-KPT-900 |
US $1.50 |
||
|
26
|
26
90454-KPS-900 Washer b (20mm) |
90454-KPS-900 |
from US $0.59 |
||
|
27
|
27
90455-KPS-900 Washer a (20mm) |
90455-KPS-900 |
US $2.87 |
||
|
28
|
28
90605-KPS-900 Set-ring (20mm) |
90605-KPS-900 |
US $3.21 |
||
|
29
|
29
91005-965-681 Bearing (6006) |
91005-965-681 |
from US $23.12 |
||
|
30
|
30
91015-KK6-003 Bearing (6202u) |
91015-KK6-003 |
from US $11.69 |
||
|
31
|
31
91016-KPS-900 Bearing (6204) |
91016-KPS-900 |
US $9.66 |
||
|
32
|
32
91216-KGH-901 Oil seal (20x37x7) |
91216-KGH-901 |
from US $2.69 |
||
|
33
|
33
96600-0801818 Bolt, socket (8x18) |
96600-0801818 |
from US $0.74 |
||
