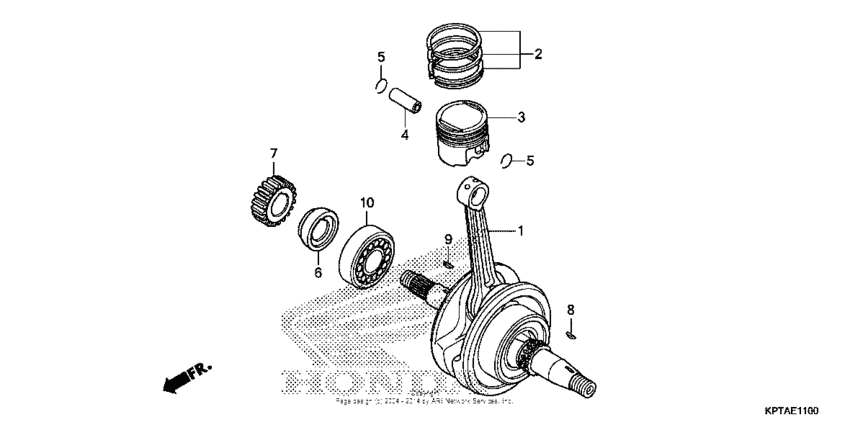

Crankshaft + piston Diagram Honda CRF150 CRF150F
- Year
- 2013
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021*DR100001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-KSP-911 Crankshaft |
13000-KSP-911 |
US $301.07 |
||
|
2
|
2
13011-KRM-306 Ring set (std) |
13011-KRM-306 |
from US $35.09 |
||
|
2
|
2
13021-KRM-306 Ring set (0.25)(Optional). |
13021-KRM-306 |
US $67.86 |
||
|
2
|
2
13031-KRM-306 Ring set (0.50)(Optional). |
13031-KRM-306 |
US $105.83 |
||
|
2
|
2
13041-KRM-306 Ring set (0.75)(Optional). |
13041-KRM-306 |
US $62.27 |
||
|
2
|
2
13051-KRM-306 Ring set (1.00)(Optional). |
13051-KRM-306 |
US $62.27 |
||
|
3
|
3
13101-KRM-930 Piston (std) |
13101-KRM-930 |
US $44.68 |
||
|
3
|
3
13102-KRM-315 Piston (os 0.25)(Optional). |
13102-KRM-315 |
US $45.25 |
||
|
3
|
3
13103-KRM-305 Superceded(Optional). |
13103-KRM-305 |
US $60.91 |
||
|
3
|
3
13104-KRM-305
Piston (0.75) (na use alt:13105-krm-315)
(Optional). |
13104-KRM-305 |
— | ||
|
3
|
3
13105-KRM-305
Piston (1.00) (na use alt:13105-krm-315)
(Optional). |
13105-KRM-305 |
— | ||
|
4
|
4
13111-KRM-840 Pin, piston |
13111-KRM-840 |
US $9.69 |
||
|
5
|
5
13112-KRM-840 Clip (14mm) |
13112-KRM-840 |
US $1.11 |
||
|
6
|
6
13412-KTE-910 CollarR. CRANKSHAFT |
13412-KTE-910 |
from US $7.55 |
||
|
7
|
7
23121-KRM-840 Gear (20t) |
23121-KRM-840 |
US $40.39 |
||
|
8
|
8
90741-KFB-000 Key, woodruff (4mm) |
90741-KFB-000 |
from US $2.18 |
||
|
9
|
9
90741-KGH-900 Key, woodruff (4mm) |
90741-KGH-900 |
from US $0.72 |
||
|
10
|
10
91001-KRM-842 Bearing (30x58x17) |
91001-KRM-842 |
from US $44.60 |
