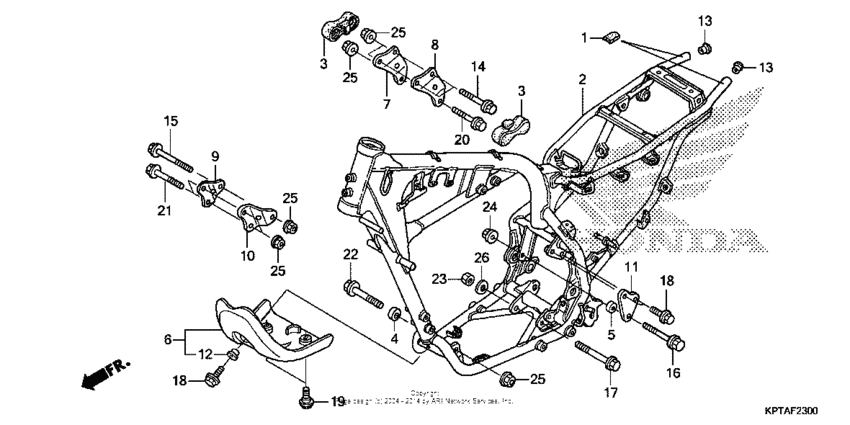

Frame Diagram Honda CRF150 CRF150F
- Year
- 2013
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021*DR100001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17518-KPF-900 Rubber b, fuel tank |
17518-KPF-900 |
US $2.50 |
||
|
2
|
2
50100-KPT-A00ZA Frame *nh146m*Extreme red R292R; |
50100-KPT-A00ZA |
US $605.03 |
||
|
3
|
3
50212-KPS-900 Rubber, tank guard |
50212-KPS-900 |
US $5.44 |
||
|
4
|
4
50318-GE2-000 Colr, engine setting |
50318-GE2-000 |
from US $3.92 |
||
|
5
|
5
50318-KPT-A00 Collar, rr. (upper) |
50318-KPT-A00 |
US $4.03 |
||
|
6
|
6
50351-KPT-A00ZA Plate, skid *nh201r*Extreme red R292R; |
50351-KPT-A00ZA |
US $42.40 |
||
|
7
|
7
50531-KPT-A00 Plate, r. eng hgr |
50531-KPT-A00 |
US $10.29 |
||
|
8
|
8
50532-KPT-A00 Plate, l. eng hgr |
50532-KPT-A00 |
US $9.06 |
||
|
9
|
9
50533-KPS-900 Plate, r. fr. |
50533-KPS-900 |
US $5.85 |
||
|
10
|
10
50534-KPS-900 Plate, l. fr. |
50534-KPS-900 |
US $5.85 |
||
|
11
|
11
50535-KPT-900 Plate, l. rr. |
50535-KPT-900 |
US $3.91 |
||
|
12
|
12
80138-KPS-900 Collar (14x5) |
80138-KPS-900 |
US $3.03 |
||
|
13
|
13
84103-392-000 Cap, rr. bumper |
84103-392-000 |
from US $4.29 |
||
|
14
|
14
90013-KRH-D20 BoltFLANGE, 8X56 |
90013-KRH-D20 |
US $2.28 |
||
|
15
|
15
90024-MV9-670 Bolt, flange (8x88) |
90024-MV9-670 |
from US $3.85 |
||
|
16
|
16
90102-KPT-A00 Bolt, flg (10x118) |
90102-KPT-A00 |
from US $9.55 |
||
|
17
|
17
90105-MG3-000 Bolt, flg (10x110) |
90105-MG3-000 |
from US $9.92 |
||
|
18
|
18
90107-KPS-900 Bolt, flange (8x16) |
90107-KPS-900 |
US $1.50 |
||
|
19
|
19
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
20
|
20
90150-GN1-000 Bolt, flange (8x47) |
90150-GN1-000 |
from US $3.26 |
||
|
21
|
21
90154-KB7-700 Bolt, flange, 8x73 |
90154-KB7-700 |
from US $5.03 |
||
|
22
|
22
90156-KK6-000 Bolt, flange (8x96) |
90156-KK6-000 |
from US $4.74 |
||
|
23
|
23
90302-KPS-900 Nut, hex. (10mm) |
90302-KPS-900 |
US $0.41 |
||
| replacement | |||||
|
23
|
23
90203-GHR-850 NutHEX., 10MM |
90203-GHR-850 |
US $1.38 |
||
|
24
|
24
90208-GHR-650 Nut flange 10mm |
90208-GHR-650 |
US $1.28 |
||
|
25
|
25
90208-GHR-640 Nut,flange 8mm |
90208-GHR-640 |
US $3.15 |
||
|
26
|
26
90441-MT3-000 Washer (10mm) |
90441-MT3-000 |
US $11.31 |
||
