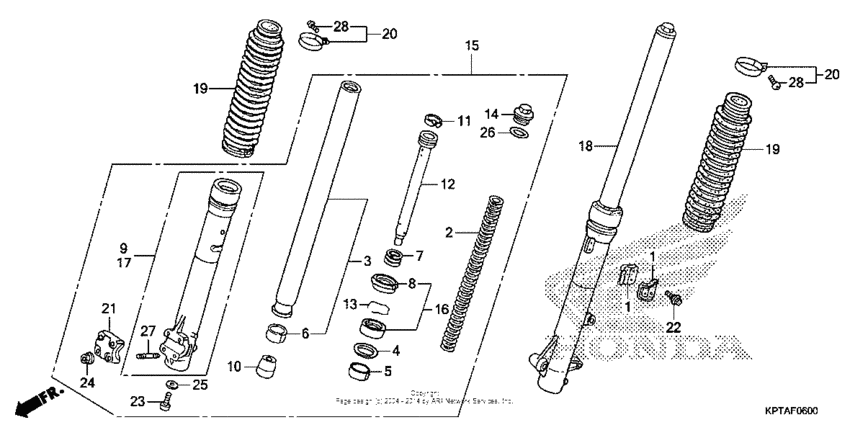

Front fork Diagram Honda CRF150 CRF150F
- Year
- 2013
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021*DR100001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45461-KPS-900 Clamp a, brake hose |
45461-KPS-900 |
US $9.89 |
||
|
2
|
2
51401-KPT-901 Spring, fr. fork |
51401-KPT-901 |
US $14.77 |
||
|
3
|
3
51410-KPT-901 Pipe, fr. fork |
51410-KPT-901 |
US $135.61 |
||
|
4
|
4
51412-422-003 Ring, back-up |
51412-422-003 |
from US $5.48 |
||
|
5
|
5
51414-469-003 Bush, guide |
51414-469-003 |
from US $10.21 |
||
| replacement | |||||
|
5
|
5
51414-MBV-711 BushGUIDE |
51414-MBV-711 |
from US $11.25 |
||
|
6
|
6
51415-KL4-951 Bush, slider |
51415-KL4-951 |
from US $9.80 |
||
| replacement | |||||
|
6
|
6
51415-MBV-711 BushSLIDER |
51415-MBV-711 |
from US $10.21 |
||
|
7
|
7
51416-GC4-731 Spring, fr. rebound |
51416-GC4-731 |
from US $5.03 |
||
|
8
|
8
51425-KL4-951 Dust seal |
51425-KL4-951 |
from US $10.21 |
||
|
9
|
9
51430-KPT-A01 Case set, r. (lower) |
51430-KPT-A01 |
US $123.81 |
||
|
10
|
10
51432-KB7-003 Piece, oil lock |
51432-KB7-003 |
from US $14.82 |
||
|
11
|
11
51437-461-003 Ring, piston |
51437-461-003 |
from US $7.15 |
||
|
12
|
12
51440-KPT-A01 Pipe, seat |
51440-KPT-A01 |
US $23.95 |
||
|
13
|
13
51447-KL4-951 Ring |
51447-KL4-951 |
from US $2.66 |
||
|
14
|
14
51455-KE1-901 Bolt, fr. fork |
51455-KE1-901 |
from US $21.98 |
||
|
15
|
15
51480-KPT-305 Fork set, r. fr. |
51480-KPT-305 |
US $515.42 |
||
|
16
|
16
51490-KL4-951 Seal set, fr. fork |
51490-KL4-951 |
from US $19.42 |
||
|
17
|
17
51530-KPT-A01 Case set, l. (lower) |
51530-KPT-A01 |
US $118.90 |
||
|
18
|
18
51580-KPT-305 Fork set, l. fr. |
51580-KPT-305 |
US $515.42 |
||
|
19
|
19
51611-KL4-952ZK Boot, fr. fork *nh1*Extreme red R292R; |
51611-KL4-952ZK |
from US $38.62 |
||
|
20
|
20
51612-428-900 Band, fr. fork boot |
51612-428-900 |
from US $9.92 |
||
|
21
|
21
51634-MA0-003 Holder, axle |
51634-MA0-003 |
from US $17.41 |
||
|
22
|
22
90040-GHR-650 Bolt, flange (6x14) |
90040-GHR-650 |
US $3.96 |
||
|
23
|
23
90116-KV3-701 Bolt, socket (8mm) |
90116-KV3-701 |
from US $1.55 |
||
|
24
|
24
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $4.74 |
||
|
25
|
25
90544-439-930 Gasket |
90544-439-930 |
from US $2.15 |
||
|
26
|
26
91356-428-003 O-ring (25.7x2.8) |
91356-428-003 |
from US $3.92 |
||
|
27
|
27
92900-06025-0E Bolt, stud (6x25) |
92900-06025-0E |
from US $0.59 |
||
|
28
|
28
93500-030200G Screw, pan (3x20) |
93500-030200G |
from US $0.37 |
||
