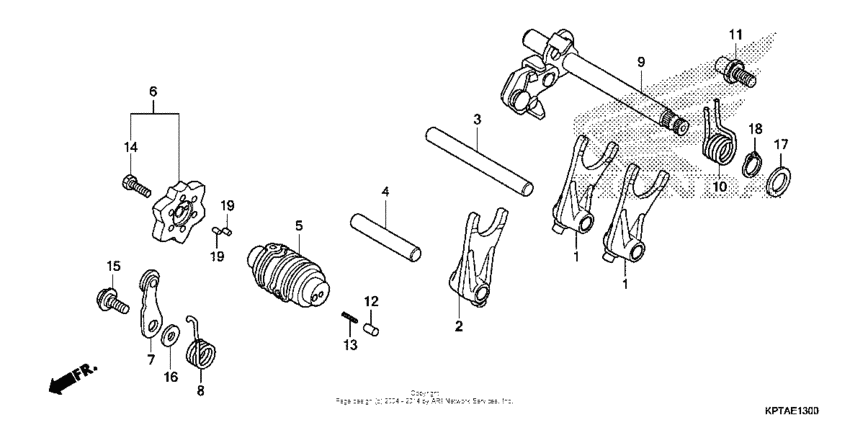

Gearshift drum Diagram Honda CRF150 CRF150F
- Year
- 2013
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021*DR100001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-KPT-A00 Fork, gearshift |
24211-KPT-A00 |
US $45.78 |
||
|
2
|
2
24212-KPT-A00 Fork |
24212-KPT-A00 |
US $56.78 |
||
|
3
|
3
24241-KRM-840 Shaft a |
24241-KRM-840 |
US $9.71 |
||
|
4
|
4
24242-KRM-840 Shaft b |
24242-KRM-840 |
US $10.17 |
||
|
5
|
5
24301-KPT-A00 Drum, gearshift |
24301-KPT-A00 |
US $44.78 |
||
| replacement | |||||
|
5
|
5
24301-KVS-740 Drum,gear Shift |
24301-KVS-740 |
US $57.70 |
||
|
6
|
6
24410-KVS-305 Plate set |
24410-KVS-305 |
US $29.50 |
||
|
7
|
7
24430-KRM-B10 Stopper |
24430-KRM-B10 |
from US $9.03 |
||
|
8
|
8
24436-KRM-840
Spring
|
24436-KRM-840 |
— | ||
|
9
|
9
24610-KRM-840 Spindle, gearshift |
24610-KRM-840 |
from US $39.93 |
||
|
10
|
10
24651-KRM-840 Spring |
24651-KRM-840 |
from US $4.17 |
||
|
11
|
11
24652-KRM-840 Pin |
24652-KRM-840 |
from US $4.88 |
||
|
12
|
12
35751-KPH-900 Cap,contact chang |
35751-KPH-900 |
from US $0.85 |
||
|
13
|
13
35752-KRM-840 Spring |
35752-KRM-840 |
US $0.73 |
||
|
14
|
14
90003-KVS-900 BoltHEX., 6X20 |
90003-KVS-900 |
from US $1.86 |
||
|
15
|
15
90022-KRM-840 Pivot |
90022-KRM-840 |
from US $1.85 |
||
|
16
|
16
90417-360-000 Washer, drum stopper |
90417-360-000 |
from US $2.22 |
||
|
17
|
17
90457-KRM-840 Washer (14mm) |
90457-KRM-840 |
from US $1.05 |
||
|
18
|
18
94510-14000 CirclipEXTERNAL, 14MM |
94510-14000 |
from US $0.22 |
||
|
19
|
19
9622030085 Roller (3x8.5) |
9622030085 |
from US $0.22 |
||
