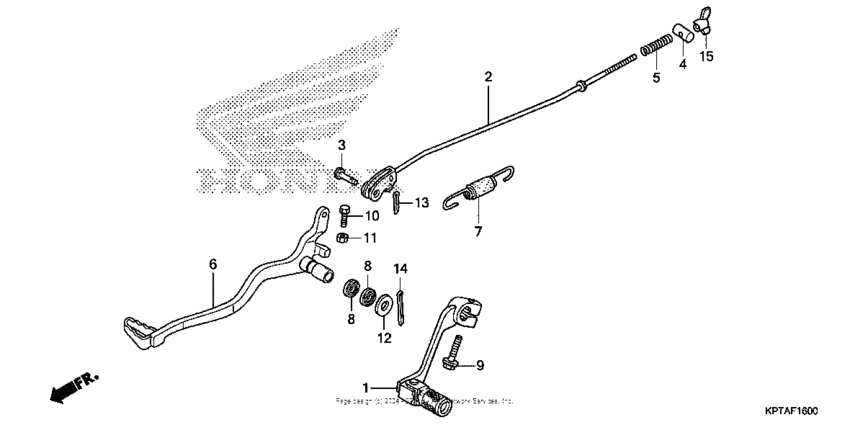

Pedal Diagram Honda CRF150 CRF150F
- Year
- 2013
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021*DR100001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-KPT-305 Pedal assy., change |
24700-KPT-305 |
US $41.48 |
||
|
2
|
2
43451-KPT-A00 Rod, rr. brake |
43451-KPT-A00 |
from US $11.10 |
||
|
3
|
3
43453-KPS-900 Pin c, joint |
43453-KPS-900 |
US $1.26 |
||
|
4
|
4
43454-KPS-900 Joint b, brake arm |
43454-KPS-900 |
US $1.82 |
||
|
5
|
5
43472-KGA-K00 Spring aBRAKE ROD |
43472-KGA-K00 |
US $2.99 |
||
| replacement | |||||
|
5
|
5
43472-KB9-750 Spring a, brake rod |
43472-KB9-750 |
from US $2.22 |
||
|
6
|
6
46500-KPT-305 Pedal, brake |
46500-KPT-305 |
US $78.98 |
||
|
7
|
7
46513-KPS-900 Spring set |
46513-KPS-900 |
US $7.43 |
||
|
8
|
8
46525-KK0-003 Dust seal |
46525-KK0-003 |
from US $2.30 |
||
|
9
|
9
90010-ML0-720 Bolt, flange (6x20) |
90010-ML0-720 |
from US $1.92 |
||
|
10
|
10
90015-GHR-680 Bolt hex 6x20 |
90015-GHR-680 |
US $0.63 |
||
|
11
|
11
90201-GHR-630 Nut, hex. (6mm) |
90201-GHR-630 |
US $0.51 |
||
|
12
|
12
90501-KRE-900 Washer, bush |
90501-KRE-900 |
US $2.79 |
||
|
13
|
13
94201-20120 PinSPLIT, 2.0X12 |
94201-20120 |
from US $0.37 |
||
|
14
|
14
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
14
|
14
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
14
|
14
9420130280 Pin, split, 3.0x28 |
9420130280 |
from US $0.44 |
||
|
14
|
14
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
15
|
15
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
