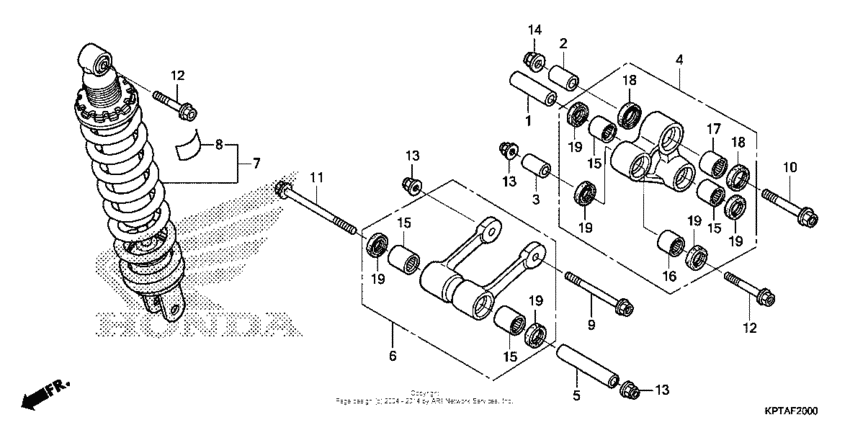

Rear shock absorber Diagram Honda CRF150 CRF150F
- Year
- 2013
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021*DR100001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52462-KPS-900 Collar a |
52462-KPS-900 |
from US $9.44 |
||
|
2
|
2
52463-KPE-900 Collar b |
52463-KPE-900 |
US $9.49 |
||
|
3
|
3
52464-KPE-900 Collar c |
52464-KPE-900 |
from US $7.62 |
||
|
4
|
4
52465-KPT-900 Arm sub-assy. |
52465-KPT-900 |
US $179.96 |
||
|
5
|
5
52472-KPS-900 Collar, conn rod |
52472-KPS-900 |
US $9.83 |
||
|
6
|
6
52475-KPT-900 Rod sub-assy. |
52475-KPT-900 |
US $206.52 |
||
|
7
|
7
52490-KPT-305 Shock absorber set |
52490-KPT-305 |
US $839.63 |
||
|
8
|
8
87516-MBL-610 Label, rr. |
87516-MBL-610 |
from US $3.18 |
||
|
9
|
9
90101-KPS-900 Bolt, flg (10x100) |
90101-KPS-900 |
US $8.19 |
||
|
10
|
10
90102-KFB-000 Bolt, flange (12x78) |
90102-KFB-000 |
from US $6.07 |
||
|
11
|
11
90102-KPS-900 Bolt, flg (10x118) |
90102-KPS-900 |
US $7.29 |
||
|
12
|
12
90154-KPS-900 Bolt, flange (10x52) |
90154-KPS-900 |
US $3.96 |
||
|
13
|
13
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
14
|
14
90306-KF0-003 Nut, flange, 12mm |
90306-KF0-003 |
from US $3.26 |
||
|
15
|
15
91071-KV3-005 Bearing, needle(17x24x25) |
91071-KV3-005 |
from US $6.70 |
||
|
16
|
16
91071-MY1-005 Bearing (17x24x17) |
91071-MY1-005 |
from US $7.11 |
||
|
17
|
17
91072-MY1-005 Bearing (20x26x20) |
91072-MY1-005 |
from US $10.48 |
||
|
18
|
18
91254-KS6-003 Dust seal |
91254-KS6-003 |
from US $2.99 |
||
|
19
|
19
91262-KV3-831 Dust seal (17x24x5) |
91262-KV3-831 |
from US $2.83 |
