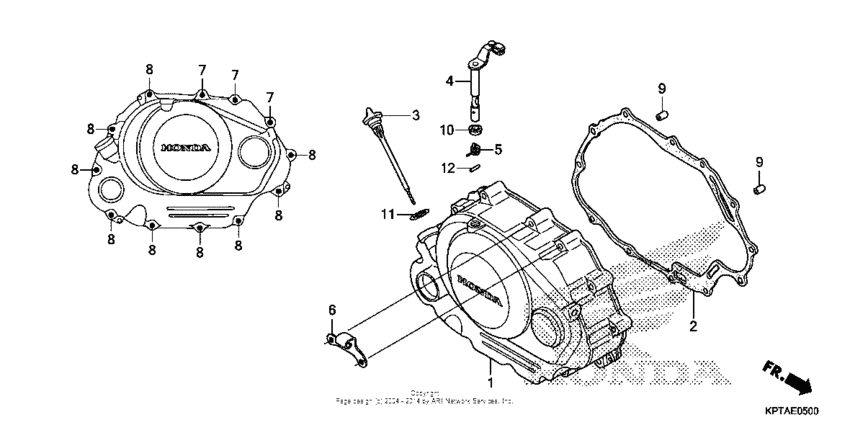

Right crankcase cover Diagram Honda CRF150 CRF150F
- Year
- 2013
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021*DR100001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-KRM-851 Cover, r. crankcase |
11330-KRM-851 |
US $110.65 |
||
|
2
|
2
11393-KWK-900 Gasket, r |
11393-KWK-900 |
from US $15.37 |
||
|
3
|
3
15651-KPT-A00
Dipstick, oil
|
15651-KPT-A00 |
— | ||
|
4
|
4
22810-KRM-B00 Lever, clutch |
22810-KRM-B00 |
from US $23.26 |
||
|
5
|
5
22815-428-000 Spring, clutch lever |
22815-428-000 |
from US $2.96 |
||
|
6
|
6
22821-KRM-840
Receiver
|
22821-KRM-840 |
— | ||
|
7
|
7
90040-GHR-720 Bolt, flange (6x30) |
90040-GHR-720 |
US $2.75 |
||
|
8
|
8
90040-GHR-760 Bolt, flange (6x40) |
90040-GHR-760 |
US $2.18 |
||
|
9
|
9
90702-KRM-840 Pin, dowel (8x14) |
90702-KRM-840 |
from US $0.88 |
||
|
10
|
10
91202-KRM-841 Oil seal (12x18x4) |
91202-KRM-841 |
US $1.84 |
||
|
10
|
10
91202-KSP-910 Oil seal12X18X4 |
91202-KSP-910 |
US $3.63 |
||
|
11
|
11
91307-KRM-840 O-ring (18x3) |
91307-KRM-840 |
from US $0.59 |
||
|
12
|
12
94305-30102 PinSPRING, 3X10 |
94305-30102 |
from US $0.65 |
