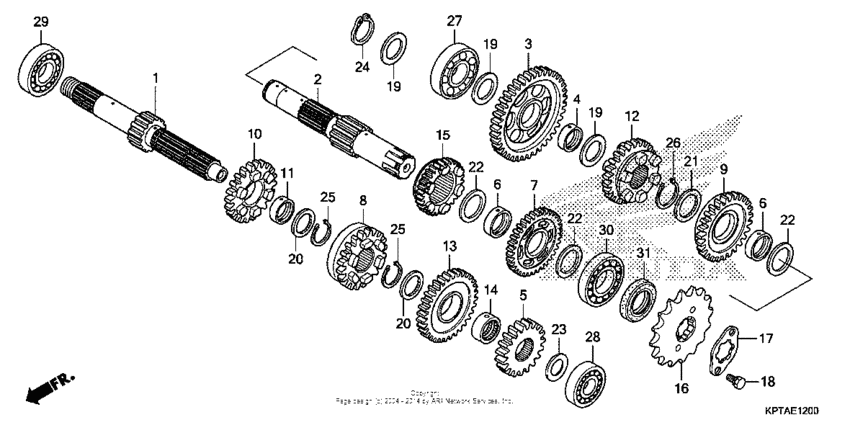

Transmission Diagram Honda CRF150 CRF150F
- Year
- 2013
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021*DR100001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23210-KRM-841 Mainshaft (14t) |
23210-KRM-841 |
US $72.93 |
||
|
2
|
2
23220-KPT-A00 Countershaft |
23220-KPT-A00 |
US $116.33 |
||
|
3
|
3
23421-KRM-840 Gear (39t) |
23421-KRM-840 |
US $36.82 |
||
|
4
|
4
23427-KRM-840 Bush (17x20.5x8.0) |
23427-KRM-840 |
from US $7.70 |
||
|
5
|
5
23431-KPT-A00 Gear (16t) |
23431-KPT-A00 |
US $9.66 |
||
|
6
|
6
23432-KRM-840 Bush (20mm) |
23432-KRM-840 |
from US $9.55 |
||
|
7
|
7
23441-KPT-A00 Gear (30t) |
23441-KPT-A00 |
US $9.62 |
||
|
8
|
8
23451-KPT-A01 Gear (22t) |
23451-KPT-A01 |
US $44.15 |
||
|
9
|
9
23461-KPT-A01 Gear (31t) |
23461-KPT-A01 |
US $21.20 |
||
|
10
|
10
23471-KPT-A00 Gear (25t) |
23471-KPT-A00 |
US $29.43 |
||
|
11
|
11
23472-KRM-840 Bush (17mm) |
23472-KRM-840 |
US $11.66 |
||
|
12
|
12
23481-KPT-A00 Gear (28t) |
23481-KPT-A00 |
US $34.29 |
||
|
13
|
13
23491-KRM-870 Gear (32t) |
23491-KRM-870 |
US $47.36 |
||
|
14
|
14
23492-KRM-840 Collar (17x20x11) |
23492-KRM-840 |
US $14.35 |
||
|
15
|
15
23501-KRM-842 Gear (30t) |
23501-KRM-842 |
US $25.33 |
||
|
16
|
16
23801-KPS-900 Sprocket (13t) |
23801-KPS-900 |
US $29.95 |
||
|
17
|
17
23811-KR3-600 Plate a2, fixing |
23811-KR3-600 |
from US $3.26 |
||
|
18
|
18
90011-KPT-A00 Bolt, hex. (6x10) |
90011-KPT-A00 |
US $3.93 |
||
| replacement | |||||
|
18
|
18
90124-KPS-900 Bolt, hex. (6x10) |
90124-KPS-900 |
US $2.65 |
||
|
19
|
19
90452-GB4-770 Washer (17mm) |
90452-GB4-770 |
from US $2.74 |
||
|
20
|
20
90452-KRM-840 Washer (17x23x1.6) |
90452-KRM-840 |
US $6.04 |
||
|
21
|
21
90453-KRM-840 Washer (20mm) |
90453-KRM-840 |
US $1.85 |
||
|
22
|
22
90454-KPS-900 Washer b (20mm) |
90454-KPS-900 |
from US $0.59 |
||
|
23
|
23
90456-KRM-840 Washer (12mm) |
90456-KRM-840 |
US $0.60 |
||
|
24
|
24
90602-KRM-840 Circlip (outer) (17) |
90602-KRM-840 |
from US $1.58 |
||
|
25
|
25
90603-KSS-900 Circlip (17mm) |
90603-KSS-900 |
US $2.14 |
||
|
26
|
26
90605-KPS-900 Set-ring (20mm) |
90605-KPS-900 |
US $3.21 |
||
|
27
|
27
91003-KRM-841 Bearing (17x42x12) |
91003-KRM-841 |
from US $12.28 |
||
|
28
|
28
91014-KRM-840 Bearing (6201u) |
91014-KRM-840 |
US $13.97 |
||
|
29
|
29
91015-KRM-840 Bearing (6203) (c3) |
91015-KRM-840 |
US $21.95 |
||
|
30
|
30
91016-KPS-900 Bearing (6204) |
91016-KPS-900 |
US $9.66 |
||
|
31
|
31
91216-KRM-841 Oil seal (20x34x7) |
91216-KRM-841 |
US $10.51 |
||
