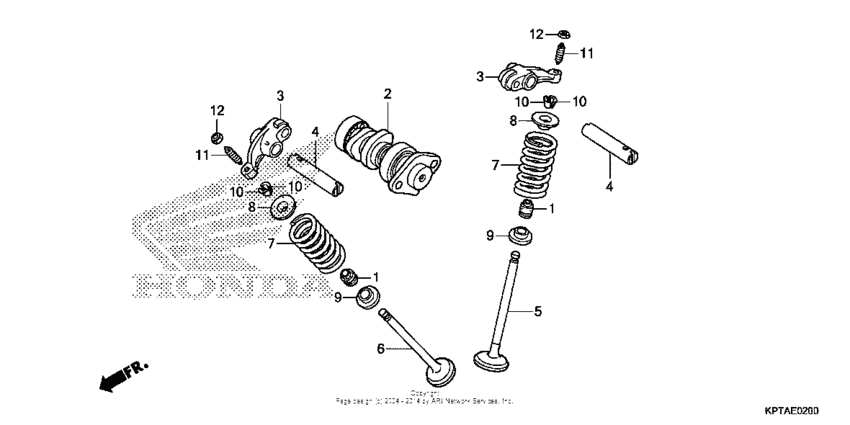

Camshaft + valve Diagram Honda CRF150 CRF150F
- Year
- 2014
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021*ER100001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12209-GB4-681 Seal, valve stem (nok) |
12209-GB4-681 |
from US $3.47 |
||
|
2
|
2
14100-KPT-A01 Camshaft |
14100-KPT-A01 |
US $236.16 |
||
|
3
|
3
14430-KRM-840 Arm, Valve Rocker |
14430-KRM-840 |
from US $40 |
||
|
4
|
4
14451-KVS-740 Shaft,rocker arm |
14451-KVS-740 |
US $17.80 |
||
|
5
|
5
14711-KRM-840 Valve, in |
14711-KRM-840 |
US $77.59 |
||
|
6
|
6
14721-KRM-840 Valve, ex |
14721-KRM-840 |
US $110.35 |
||
|
7
|
7
14751-KRM-871 Spring, valve |
14751-KRM-871 |
from US $7.55 |
||
|
8
|
8
14771-KRM-840 Retainer, vlv spr |
14771-KRM-840 |
from US $6.48 |
||
|
9
|
9
14775-KRM-840 Seat, valve spring |
14775-KRM-840 |
from US $3.09 |
||
|
10
|
10
14781-MA6-000 Cotter, valve |
14781-MA6-000 |
from US $4.14 |
||
|
11
|
11
90012-415-000 Screw, tappet adjusting |
90012-415-000 |
from US $3.29 |
||
|
12
|
12
90206-250-000 Nut, tappet adjusting |
90206-250-000 |
from US $1.92 |
