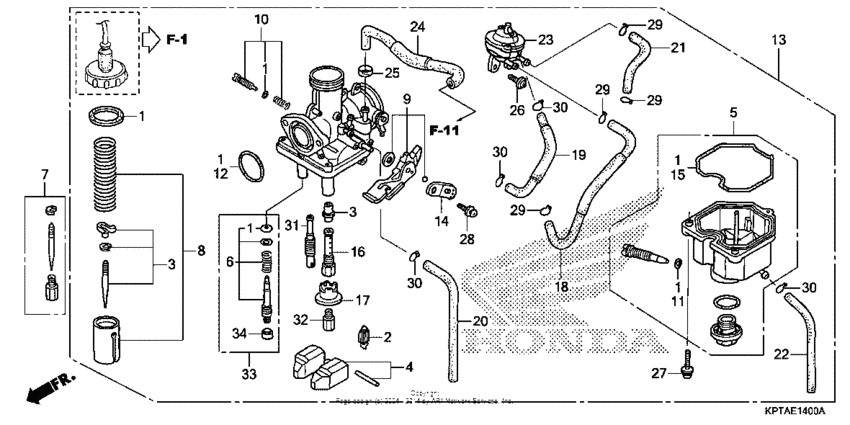

Carburetor Diagram Honda CRF150 CRF150F
- Year
- 2014
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021*ER100001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-KCN-751 Gasket set |
16010-KCN-751 |
from US $13.17 |
||
|
2
|
2
16011-KPS-921 Valve set, float |
16011-KPS-921 |
from US $38.62 |
||
|
3
|
3
16012-KPT-A01 Needle set, jet |
16012-KPT-A01 |
from US $24.79 |
||
|
4
|
4
16013-KN4-A10 Float set |
16013-KN4-A10 |
from US $31.28 |
||
|
5
|
5
16015-KPS-901 Chamber set, float |
16015-KPS-901 |
from US $88.01 |
||
|
8
|
8
16022-KPT-A21 Valve set, throttle |
16022-KPT-A21 |
US $52 |
||
|
9
|
9
16025-KCN-751 Lever set, choke |
16025-KCN-751 |
from US $22.03 |
||
|
10
|
10
16028-KEB-G01 Screw set b |
16028-KEB-G01 |
from US $11.40 |
||
|
11
|
11
16075-GHB-640 O-ring (1.3x4.3) |
16075-GHB-640 |
from US $1.78 |
||
|
12
|
12
16075-GHB-B70 O-ring (2.4x29) |
16075-GHB-B70 |
from US $6.07 |
||
|
13
|
13
16100-KPT-A61 Carburetor (pdd6j a) |
16100-KPT-A61 |
from US $343.56 |
||
|
14
|
14
16119-440-004 Plate, stay |
16119-440-004 |
from US $7.55 |
||
|
15
|
15
16163-KCS-920 Gasket |
16163-KCS-920 |
from US $4.95 |
||
|
16
|
16
16165-KEG-961 Holder, needle jet |
16165-KEG-961 |
from US $18.36 |
||
|
17
|
17
16168-382-014 Holder, jet |
16168-382-014 |
from US $7.55 |
||
|
18
|
18
16196-KPT-A01 Tube |
16196-KPT-A01 |
US $9.35 |
||
|
19
|
19
16197-KEH-900 Tube |
16197-KEH-900 |
US $3.54 |
||
|
20
|
20
16198-KEH-900 Tube |
16198-KEH-900 |
US $3.54 |
||
|
21
|
21
16198-KPS-901 Tube, air vent |
16198-KPS-901 |
US $9.13 |
||
|
22
|
22
16199-KPS-901 Tube |
16199-KPS-901 |
US $9.30 |
||
|
23
|
23
16510-KPT-A01 Valve assy., air cut |
16510-KPT-A01 |
US $115.94 |
||
|
24
|
24
17680-KPT-A20 Tube assy., fuel |
17680-KPT-A20 |
US $15.95 |
||
|
25
|
25
90641-KPT-A21 Clamp, tube |
90641-KPT-A21 |
from US $2.09 |
||
|
26
|
26
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
||
|
27
|
27
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
28
|
28
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
29
|
29
9500202089 Clip, tube (b8) |
9500202089 |
from US $0.44 |
||
|
30
|
30
9500202659 Clip, tube (b6.5) |
9500202659 |
from US $0.44 |
||
|
31
|
31
99103-KPT0400 Jet, slow (#40) |
99103-KPT0400 |
from US $6.51 |
||
|
32
|
32
99113-GHB0900 Jet, main (#90)(Optional). |
99113-GHB0900 |
from US $6.66 |
||
|
32
|
32
99113-GHB0950 Jet, main (#95) |
99113-GHB0950 |
from US $6.66 |
||
|
33
|
33
16016-KPT-A61 Screw set |
16016-KPT-A61 |
from US $13.66 |
||
|
34
|
34
16312-KYK-911 Cap, adjusting screw |
16312-KYK-911 |
from US $2.39 |
