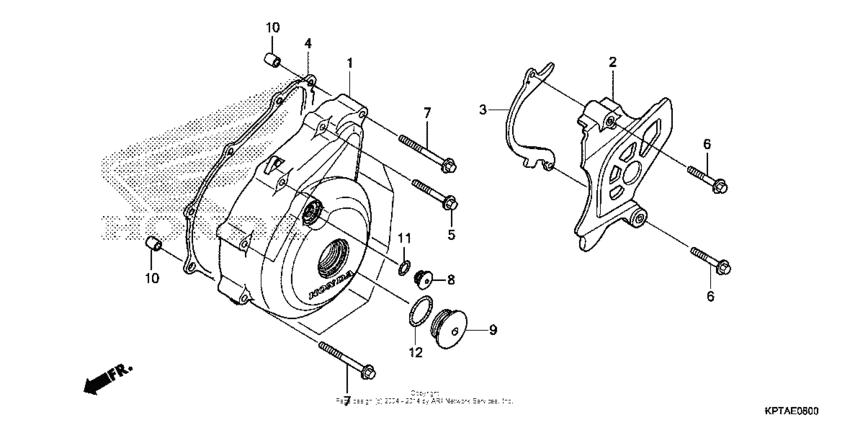

Left Crankcase Cover Diagram Honda CRF150 CRF150F
- Year
- 2014
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021*ER100001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-KRM-840 Cover, l. crankcase |
11341-KRM-840 |
US $67.90 |
||
|
2
|
2
11360-KPT-A00 Cover, l. rr. |
11360-KPT-A00 |
US $18.02 |
||
|
3
|
3
11365-KPT-A00 Guide, drive chain |
11365-KPT-A00 |
US $10.27 |
||
|
4
|
4
11395-KWK-900 Gasket, l. cover |
11395-KWK-900 |
from US $10.35 |
||
|
5
|
5
90040-GHR-740 Bolt, flange (6x35) |
90040-GHR-740 |
US $1.92 |
||
|
6
|
6
90040-GHR-760 Bolt, flange (6x40) |
90040-GHR-760 |
US $2.18 |
||
|
7
|
7
90040-GHR-770 Bolt, flange (6x45) |
90040-GHR-770 |
US $6.07 |
||
|
8
|
8
90084-KPS-900 Cap (14mm) |
90084-KPS-900 |
from US $2.47 |
||
|
9
|
9
90087-KRM-840 Cap (32mm) |
90087-KRM-840 |
from US $11.69 |
||
|
10
|
10
90702-KRM-840 Pin, dowel (8x14) |
90702-KRM-840 |
from US $0.88 |
||
|
11
|
11
91303-KRM-840 O-ring (13.8x2.5) |
91303-KRM-840 |
from US $1.28 |
||
|
12
|
12
91305-KRM-840 O-ring (31.7x2.4) |
91305-KRM-840 |
from US $2.02 |
