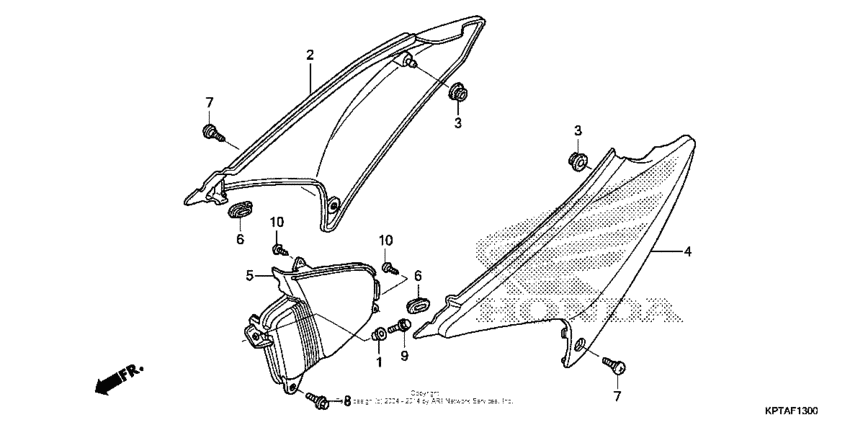

Side cover Diagram Honda CRF150 CRF150F
- Year
- 2014
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021*ER100001 -
- Engine Capacity
- 150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52156-KAS-900 Collar (6.5x4) |
52156-KAS-900 |
US $1.05 |
||
|
2
|
2
83500-KPS-900ZA Cvr, r. side *nh196*Extreme red R292R; |
83500-KPS-900ZA |
US $34 |
||
|
3
|
3
83551-376-000 Grommet, side cover |
83551-376-000 |
from US $4.52 |
||
|
4
|
4
83600-KPS-900ZA Cvr, l. side *nh196*Extreme red R292R; |
83600-KPS-900ZA |
US $34 |
||
|
5
|
5
83601-KPS-900ZB Cover *nh1*Extreme red R292R; |
83601-KPS-900ZB |
US $9.13 |
||
|
6
|
6
83601-MB0-000 Grommet a, side cover |
83601-MB0-000 |
from US $2.95 |
||
|
7
|
7
90103-KV3-830 Screw a |
90103-KV3-830 |
from US $2.52 |
||
|
8
|
8
90111-187-000 BoltFLANGE, 6MM |
90111-187-000 |
from US $4 |
||
|
9
|
9
93404-060-250-7 Bolt-washer6X25 |
93404-060-250-7 |
from US $0.59 |
||
|
10
|
10
93913-24120 ScrewTAPPING, 4X10 |
93913-24120 |
from US $0.38 |
