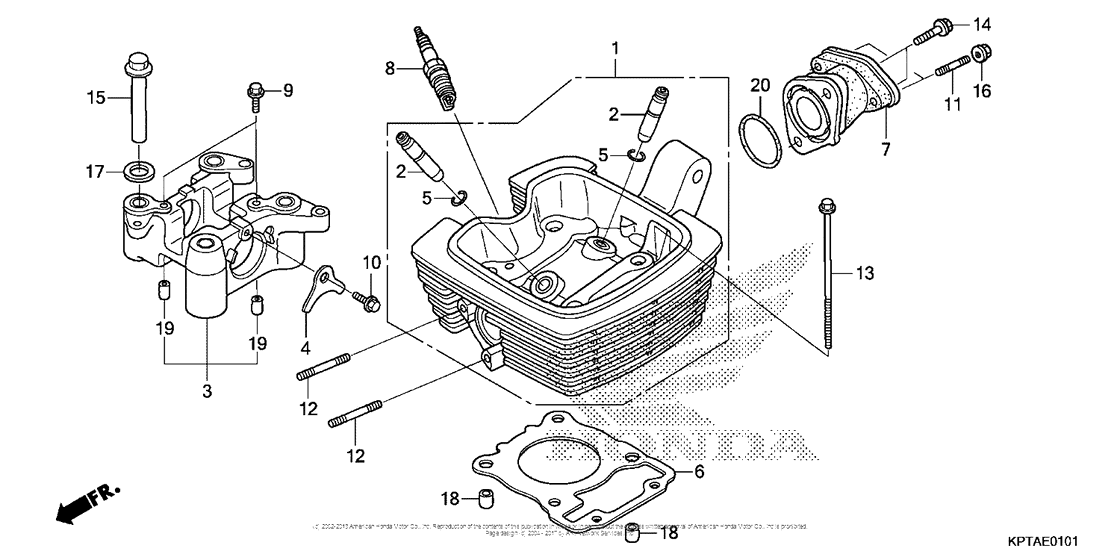

Cylinder Head Diagram Honda CRF150 CRF150F
- Year
- 2016
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021 - GR100001
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-KPT-A00 Cylinder head |
12200-KPT-A00 |
US $190.45 |
||
|
2
|
2
12204-KRM-305 Guide, valve (os) |
12204-KRM-305 |
from US $14.36 |
||
|
3
|
3
12210-K13-910 HOLDER COMP,CAM S |
12210-K13-910 |
US $43.71 |
||
|
4
|
4
12212-KRM-840 Plate, stopper |
12212-KRM-840 |
from US $1.85 |
||
|
5
|
5
12213-KRM-840
Clip, valve guide
|
12213-KRM-840 |
— | ||
|
6
|
6
12251-KRM-B41 Gasket, cyl hd |
12251-KRM-B41 |
US $9.06 |
||
|
7
|
7
16210-KPT-A00
Insulator, carb
|
16210-KPT-A00 |
— | ||
|
8
|
8
31916-KRM-841 Spark plug (cpr8ea-9) |
31916-KRM-841 |
from US $9.35 |
||
|
8
|
8
31926-KRM-841 *31916-krm-841 |
31926-KRM-841 |
from US $12.28 |
||
|
9
|
9
90002-KRM-840 Bolt, flange (5x14) |
90002-KRM-840 |
from US $0.87 |
||
|
10
|
10
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
11
|
11
90033-KPT-900 Bolt 2, stud (6x16) |
90033-KPT-900 |
US $1 |
||
|
12
|
12
90035-KRM-840 Bolt 2, stud (8x22) |
90035-KRM-840 |
from US $0.34 |
||
|
13
|
13
90036-KVS-900 Bolt, flange (6x105) |
90036-KVS-900 |
US $5.54 |
||
|
14
|
14
90091-KRM-840 Bolt (6x22) |
90091-KRM-840 |
from US $1.05 |
||
|
15
|
15
90306-KRM-840 Nut, cylinder head |
90306-KRM-840 |
from US $1.19 |
||
|
16
|
16
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
17
|
17
90404-KPT-A00 Washer, plain (12mm) |
90404-KPT-A00 |
from US $0.40 |
||
|
18
|
18
94301-10120 Dowel pin10X12 |
94301-10120 |
from US $1.04 |
||
|
19
|
19
90704-KRM-840 Pin, dowel (6x10) |
90704-KRM-840 |
from US $1.34 |
||
|
19
|
19
94303-06100 Dowel pin6X10 |
94303-06100 |
from US $0.93 |
||
|
20
|
20
91304-KRM-840 O-ring (33.5x3.0) |
91304-KRM-840 |
US $4.85 |
