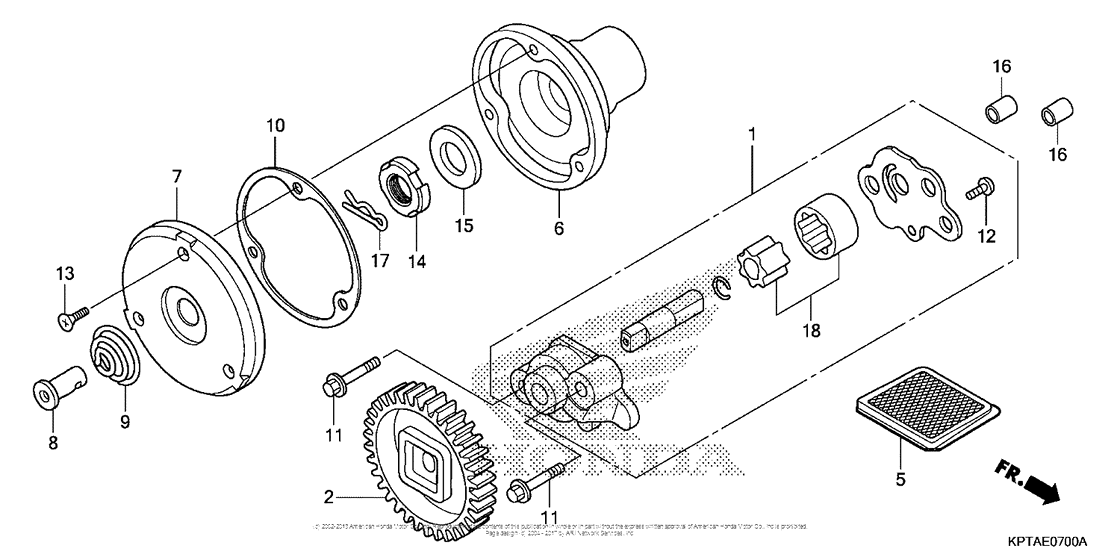

Oil Pump Diagram Honda CRF150 CRF150F
- Year
- 2016
- Model code
- CRF150F AC
- Sales region
- USA
- Frame
- 9C2KE021 - GR100001
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-KVS-740 Oil pump assy |
15100-KVS-740 |
US $75.99 |
||
|
2
|
2
15130-KRM-840 Gear (34t) |
15130-KRM-840 |
US $66.15 |
||
|
5
|
5
15421-KSP-910 Screen, oil filter |
15421-KSP-910 |
from US $5.76 |
||
|
6
|
6
15430-KSP-910 Rotor, oil filter |
15430-KSP-910 |
from US $6.55 |
||
|
7
|
7
15436-KRM-840 Cap |
15436-KRM-840 |
from US $3.13 |
||
|
8
|
8
15441-KCS-650 Through, oil |
15441-KCS-650 |
from US $5.77 |
||
|
9
|
9
15446-107-000 Spring, oil through |
15446-107-000 |
from US $3.11 |
||
|
10
|
10
15459-KWK-900 Gskt, oil filter cap |
15459-KWK-900 |
from US $2.59 |
||
| replacement | |||||
|
10
|
10
15459-K70-630 Gskt, oil filter cap |
15459-K70-630 |
from US $2.89 |
||
|
11
|
11
95701-0603500 Bolt, flange, 6x35 |
95701-0603500 |
from US $0.59 |
||
|
12
|
12
93901-34120 ScrewTAPPING, 4X8 |
93901-34120 |
from US $0.37 |
||
|
13
|
13
93700-050-120-A Screw, oval (5x12) |
93700-050-120-A |
from US $0.37 |
||
|
14
|
14
90231-KRM-840 Nut, lock (14mm) |
90231-KRM-840 |
from US $2.66 |
||
|
15
|
15
90432-KPT-A00 Washer (14.2x26x3) |
90432-KPT-A00 |
from US $2.64 |
||
|
16
|
16
90702-KRM-840 Pin, dowel (8x14) |
90702-KRM-840 |
from US $0.88 |
||
|
17
|
17
90751-KPS-900 Pin, lock (8mm) |
90751-KPS-900 |
US $0.51 |
||
|
18
|
18
15022-KRE-G00
Rotor Set B, Oil Pump
|
15022-KRE-G00 |
— | ||
