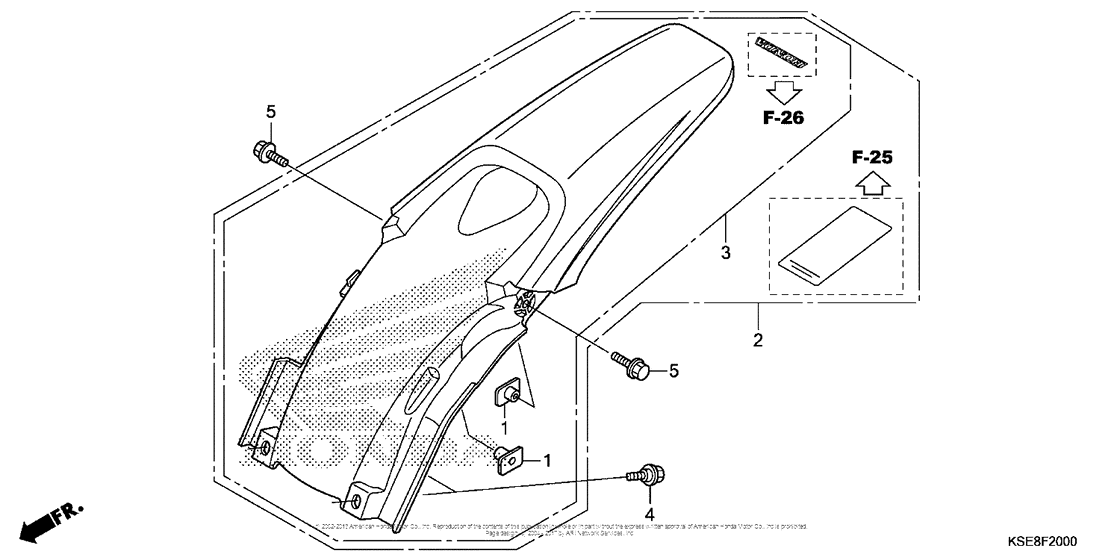

Rear Fender Diagram Honda CRF150 CRF150RB
- Year
- 2017
- Model code
- CRF150RB AC
- Sales region
- USA
- Frame
- JH2KE03C - HK800001
- Engine Capacity
- 150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61304-958-003 Nut, special, 6x7 |
61304-958-003 |
from US $3.18 |
||
|
2
|
2
80010-KSE-306ZA FDR, RR. (TYPE1) |
80010-KSE-306ZA |
from US $52.21 |
||
|
3
|
3
80101-KSE-A30ZA Fender setRR. (WL) *TYPE1* |
80101-KSE-A30ZA |
from US $51.44 |
||
|
4
|
4
90107-KSE-000 Bolt, flange (6mm) |
90107-KSE-000 |
from US $2.29 |
||
|
5
|
5
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
