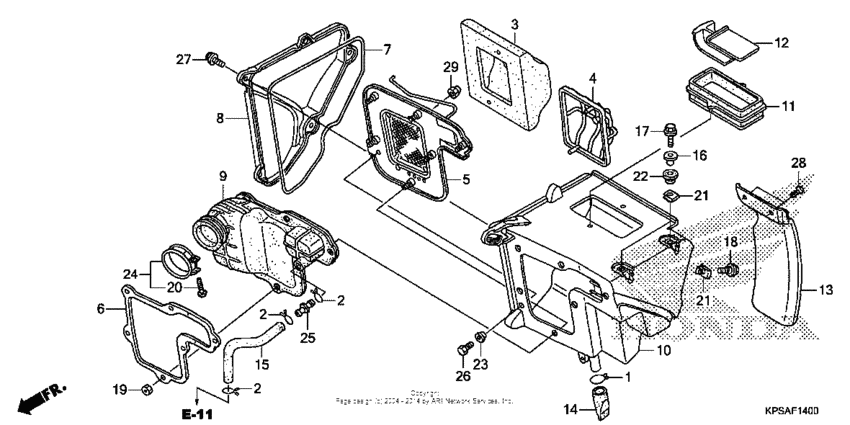

Air cleaner Diagram Honda CRF230 CRF230F
- Year
- 2012
- Model code
- CRF230F AC
- Sales region
- USA
- Frame
- 9C2ME091*CR100001 - 9C2ME091*CR199999
- Engine Capacity
- 230
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15772-292-010 Clip, breather tube |
15772-292-010 |
from US $2.15 |
||
|
2
|
2
15772-MN1-670 Clip b |
15772-MN1-670 |
from US $2.24 |
||
|
3
|
3
17213-KPS-900 Element, air cleaner |
17213-KPS-900 |
from US $34.68 |
||
|
4
|
4
17214-KPS-900 Holder, element |
17214-KPS-900 |
from US $9.32 |
||
|
5
|
5
17216-KPS-900 Plate |
17216-KPS-900 |
from US $65.89 |
||
|
6
|
6
17217-KPS-900 Plate, fr. holder |
17217-KPS-900 |
US $7.33 |
||
|
7
|
7
17219-KPS-900 Seal |
17219-KPS-900 |
from US $4.16 |
||
|
8
|
8
17220-KPS-900ZA Cover *nh1*Extreme red R292R; |
17220-KPS-900ZA |
US $12.90 |
||
|
9
|
9
17222-KPS-900 Tube |
17222-KPS-900 |
US $36.81 |
||
|
10
|
10
17230-KPS-900 Housing, air cleaner |
17230-KPS-900 |
US $574.94 |
||
|
11
|
11
17240-KPS-900 Duct |
17240-KPS-900 |
US $22.29 |
||
|
12
|
12
17241-KPS-900 Cap, in. duct |
17241-KPS-900 |
US $4.01 |
||
|
13
|
13
17245-KPS-900 Mudguard |
17245-KPS-900 |
US $13.45 |
||
|
14
|
14
17358-170-000 Tube, drain |
17358-170-000 |
from US $3.11 |
||
|
15
|
15
17371-KPS-900 Tube, breather |
17371-KPS-900 |
US $8.19 |
||
|
16
|
16
83505-KPS-900 Colr, cover mounting |
83505-KPS-900 |
US $1.38 |
||
|
17
|
17
90040-GHR-680 Bolt, flange (6x20) |
90040-GHR-680 |
US $1.34 |
||
|
18
|
18
90120-KRM-860 Bolt, flange (6mm) |
90120-KRM-860 |
US $1.45 |
||
|
19
|
19
90201-GHR-E20 NutHEX., 5MM |
90201-GHR-E20 |
US $1.60 |
||
|
20
|
20
90227-GHR-E10 ScrewPAN, 5X28 |
90227-GHR-E10 |
US $1.39 |
||
|
21
|
21
90311-KPS-900 Nut, clip (6mm) |
90311-KPS-900 |
US $3.33 |
||
|
22
|
22
90505-MC4-000 Grommet a |
90505-MC4-000 |
from US $2.89 |
||
|
23
|
23
90520-134-000 Washer |
90520-134-000 |
from US $3.11 |
||
|
24
|
24
90652-KPS-900 Band (52) |
90652-KPS-900 |
US $7 |
||
|
25
|
25
91463-KPS-900 Joint, tube |
91463-KPS-900 |
US $2.02 |
||
|
26
|
26
92101-05010-0A BoltHEX., 5X10 |
92101-05010-0A |
from US $0.37 |
||
|
27
|
27
93891-050-120-7 Screw-washer5X12 |
93891-050-120-7 |
from US $0.44 |
||
|
28
|
28
93903-25210 ScrewTAPPING, 5X12 |
93903-25210 |
from US $0.38 |
||
|
29
|
29
94021-050200S Nut, cap, 5mm |
94021-050200S |
from US $0.55 |
