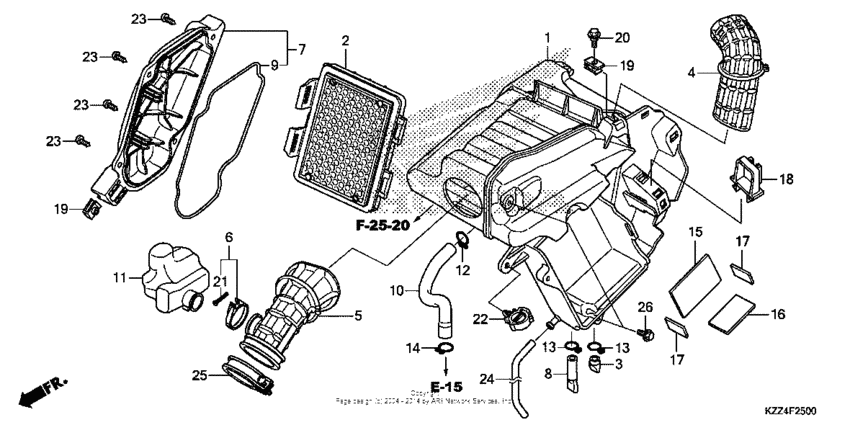

Air cleaner Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17210-KZZ-900 Housing, air cleaner |
17210-KZZ-900 |
from US $37.08 |
||
|
2
|
2
17220-KZZ-900 Element, air cleaner |
17220-KZZ-900 |
from US $20.13 |
||
| replacement | |||||
|
2
|
2
17220-KZZ-J00 ELEMENT, AIR CLEANER |
17220-KZZ-J00 |
from US $20.13 |
||
|
3
|
3
17234-KCW-871 Tube |
17234-KCW-871 |
from US $2.96 |
||
|
4
|
4
17241-KZZ-900 Duct, air cleaner |
17241-KZZ-900 |
from US $11.99 |
||
|
5
|
5
17251-KZZ-900 Tube |
17251-KZZ-900 |
from US $16.18 |
||
|
6
|
6
17255-MCG-000 Band 28,resonator |
17255-MCG-000 |
from US $4.47 |
||
|
7
|
7
17260-KZZ-900 Lid, air cleaner |
17260-KZZ-900 |
from US $9.88 |
||
|
8
|
8
17261-KVB-T00 Tube, drain |
17261-KVB-T00 |
from US $2.14 |
||
|
9
|
9
17262-KZZ-900 Seal, air cleaner |
17262-KZZ-900 |
from US $2.23 |
||
|
10
|
10
17265-KZZ-900 Tube, breather |
17265-KZZ-900 |
from US $6.81 |
||
|
11
|
11
17311-KZZ-900 Resonator |
17311-KZZ-900 |
from US $8.77 |
||
|
12
|
12
17316-611-000 Clip, breather tube |
17316-611-000 |
from US $2.29 |
||
|
13
|
13
17371-174-670 ClipBREATHER TUBE |
17371-174-670 |
from US $2.29 |
||
|
14
|
14
17724-102-700 ClipSUB TANK HOSE |
17724-102-700 |
from US $2.44 |
||
|
15
|
15
31511-KCZ-J60 Rub, battery cushion |
31511-KCZ-J60 |
from US $5.03 |
||
|
16
|
16
31511-KE2-850 Rubber |
31511-KE2-850 |
from US $4.59 |
||
|
17
|
17
31511-KZZ-900 Rub, battery cushion |
31511-KZZ-900 |
from US $2 |
||
|
18
|
18
80105-KZZ-900 Stay, fuse box |
80105-KZZ-900 |
from US $1.29 |
||
|
19
|
19
84601-HC4-000 Nut, fender setting |
84601-HC4-000 |
from US $3.63 |
||
|
20
|
20
90109-KZZ-900 Bolt, flange (6mm) |
90109-KZZ-900 |
from US $1.21 |
||
|
21
|
21
90227-GHR-E00 ScrewPAN, 5X25 |
90227-GHR-E00 |
from US $2.31 |
||
|
22
|
22
90652-KZZ-901 Clip |
90652-KZZ-901 |
from US $2.25 |
||
|
23
|
23
93903-25480 ScrewTAPPING, 5X20 |
93903-25480 |
from US $0.37 |
||
|
24
|
24
95003-190-0810M
Bulk hose, vinyl
|
95003-190-0810M |
— | ||
|
25
|
25
9501856250 Band (56) |
9501856250 |
from US $3.26 |
||
|
26
|
26
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
