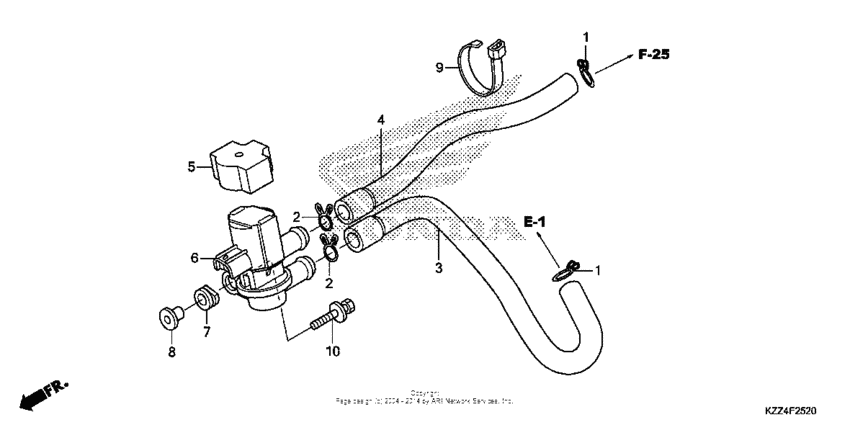

Air injection solenoid valve Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17316-611-000 Clip, breather tube |
17316-611-000 |
from US $2.29 |
||
|
2
|
2
17724-102-700 ClipSUB TANK HOSE |
17724-102-700 |
from US $2.44 |
||
|
3
|
3
18651-KZZ-900 Tube, air injection |
18651-KZZ-900 |
from US $10.18 |
||
|
4
|
4
18653-KZZ-900 Tube |
18653-KZZ-900 |
from US $13.36 |
||
|
5
|
5
35451-KVZ-630 CapAIR INJECTION SOLENOID VALVE |
35451-KVZ-630 |
from US $4.09 |
||
|
6
|
6
36450-KVZ-631 Valve assy.AIR INJECTION SOLENOID |
36450-KVZ-631 |
from US $50.46 |
||
|
7
|
7
43516-MR5-000 Rubber, setting |
43516-MR5-000 |
from US $2.74 |
||
|
8
|
8
77302-473-000 Collar, pillion seat |
77302-473-000 |
from US $3.77 |
||
|
9
|
9
90650-KW3-000 Band, wire |
90650-KW3-000 |
from US $2.89 |
||
|
10
|
10
93404-0602800 Bolt-washer, 6x28 |
93404-0602800 |
from US $0.59 |
