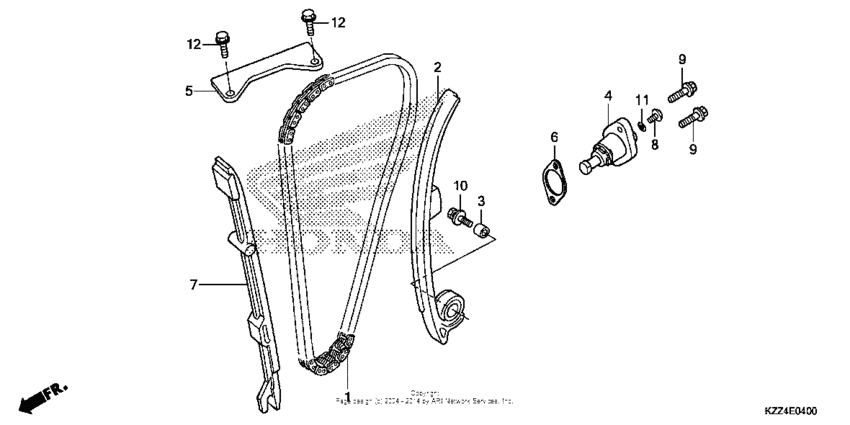

Cam chain + tensioner Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14401-KYJ-901 Chain, cam (128l) |
14401-KYJ-901 |
from US $51.41 |
||
|
2
|
2
14510-KYJ-900 Tensioner, cam chain |
14510-KYJ-900 |
from US $46.51 |
||
|
3
|
3
14517-KYJ-900 Collar, tensioner |
14517-KYJ-900 |
from US $1.55 |
||
|
4
|
4
14520-KZZ-901 Lifter, tensioner |
14520-KZZ-901 |
from US $53.84 |
||
|
5
|
5
14546-KYJ-900 Guide b, cam chain |
14546-KYJ-900 |
from US $10 |
||
|
6
|
6
14560-KGH-900 Gasket,tensioner |
14560-KGH-900 |
from US $1.90 |
||
|
7
|
7
14611-KYJ-900 Guide a, cam chain |
14611-KYJ-900 |
from US $9.50 |
||
|
8
|
8
90005-KYJ-900 Screw, pan (6x6) |
90005-KYJ-900 |
from US $1.45 |
||
|
9
|
9
90011-KYJ-900 Bolt, flange (6x22) |
90011-KYJ-900 |
from US $0.70 |
||
|
10
|
10
90022-KYJ-900 Bolt, washer (6x25) |
90022-KYJ-900 |
from US $0.70 |
||
|
11
|
11
91306-MG3-000 O-ring (1.5x9.5) |
91306-MG3-000 |
from US $2.44 |
||
|
12
|
12
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
