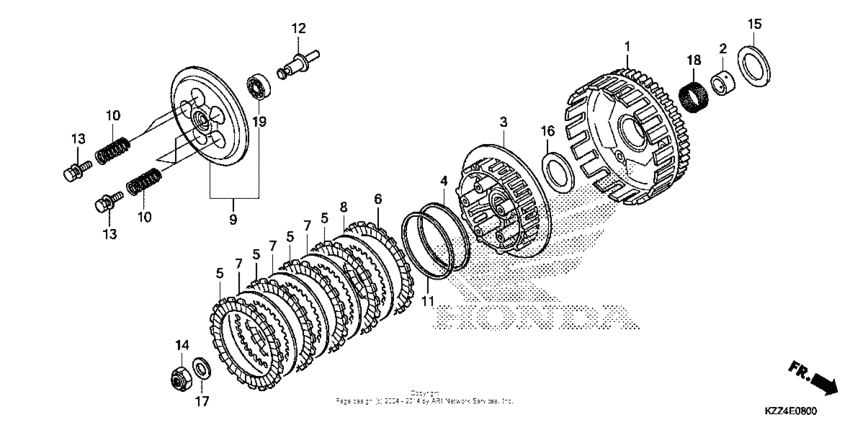

Clutch Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-KZZ-901 Clutch outer (73t) |
22100-KZZ-901 |
from US $243.97 |
||
|
2
|
2
22116-KYJ-900 Guide, clutch |
22116-KYJ-900 |
from US $4.78 |
||
|
3
|
3
22121-KZZ-901 Center, clutch |
22121-KZZ-901 |
from US $57.80 |
||
|
4
|
4
22125-KZZ-901 Seat, judder spring |
22125-KZZ-901 |
from US $9.32 |
||
|
5
|
5
22201-KYJ-902 Disk, cl friction |
22201-KYJ-902 |
from US $20.26 |
||
|
6
|
6
22202-KZZ-901 Disk b, cl friction |
22202-KZZ-901 |
from US $16.43 |
||
|
7
|
7
22321-KYJ-902 Plate, clutch |
22321-KYJ-902 |
from US $9.47 |
||
|
8
|
8
22322-KZZ-901 Plate b, clutch |
22322-KZZ-901 |
from US $10.36 |
||
|
9
|
9
22350-KYJ-902 Plate, clu press |
22350-KYJ-902 |
from US $44.88 |
||
|
10
|
10
22401-KYJ-902 Spring, clutch |
22401-KYJ-902 |
from US $4.20 |
||
|
11
|
11
22402-KZZ-902 Spring, judder |
22402-KZZ-902 |
from US $22.44 |
||
|
12
|
12
22847-KZZ-900 Pin, clutch lifter |
22847-KZZ-900 |
from US $10.12 |
||
|
13
|
13
90050-KYJ-902 Bolt (6x1.0) |
90050-KYJ-902 |
from US $1.41 |
||
|
14
|
14
90201-KYJ-900 Nut, special (16mm) |
90201-KYJ-900 |
from US $3.85 |
||
|
15
|
15
90404-KVK-900 Washer (20x40x2) |
90404-KVK-900 |
from US $2.96 |
||
|
16
|
16
90404-KYJ-902 Washer (20x40x2) |
90404-KYJ-902 |
from US $2.96 |
||
|
17
|
17
90434-KPS-900 Washer (16mm) |
90434-KPS-900 |
from US $2.91 |
||
|
18
|
18
91012-KYJ-901 Bearing (28x33x16.8) |
91012-KYJ-901 |
from US $8.26 |
||
|
19
|
19
96100-600-100-0 Bearing, radial ball, 6001 |
96100-600-100-0 |
from US $5.77 |
