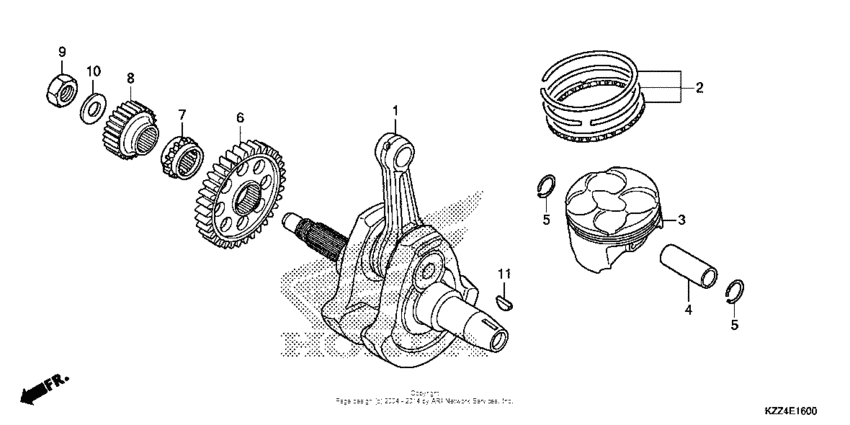

Crankshaft + piston Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-KYJ-902
Crank shaft comp
|
13000-KYJ-902 |
— | ||
| replacement | |||||
|
1
|
1
13000-KYJ-904 CRANKSHAFT |
13000-KYJ-904 |
from US $520.88 |
||
|
2
|
2
13010-KYJ-305 Ring set (std) |
13010-KYJ-305 |
from US $25.87 |
||
|
3
|
3
13101-KYJ-900 Piston (std) |
13101-KYJ-900 |
from US $82.93 |
||
|
4
|
4
13111-MEL-000 Pin, piston |
13111-MEL-000 |
from US $56.71 |
||
|
5
|
5
13112-KYJ-900 Clip (17mm) |
13112-KYJ-900 |
from US $1.85 |
||
|
6
|
6
13417-KYJ-900 Gear (34t) |
13417-KYJ-900 |
from US $27.18 |
||
|
7
|
7
14311-KYJ-900 Sprocket, timing |
14311-KYJ-900 |
from US $11.92 |
||
|
8
|
8
23121-KYJ-900 Gear (26t) |
23121-KYJ-900 |
from US $35.82 |
||
|
9
|
9
90235-KYJ-900 Nut, lock (16mm) |
90235-KYJ-900 |
from US $3.85 |
||
|
10
|
10
90434-KPS-900 Washer (16mm) |
90434-KPS-900 |
from US $2.91 |
||
|
11
|
11
90742-KYJ-900 Key (25x18) |
90742-KYJ-900 |
from US $2.59 |
||
