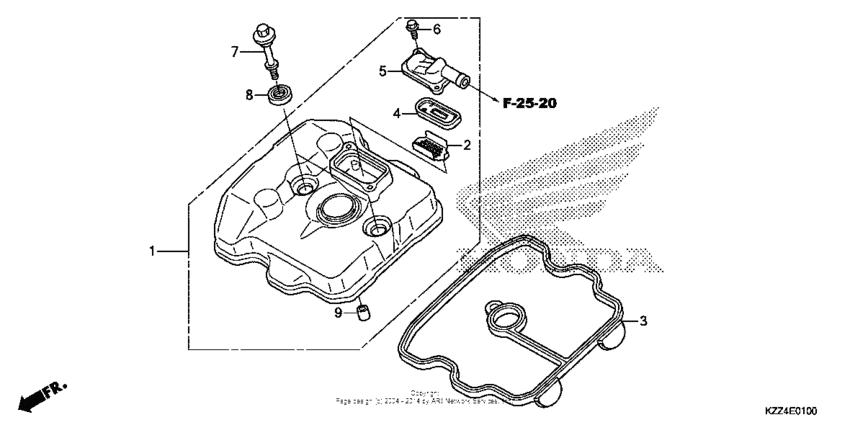

Cylinder head cover Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12300-KZZ-900 Cover, cylinder head |
12300-KZZ-900 |
from US $105.62 |
||
|
2
|
2
12341-MAT-750 Plate, port |
12341-MAT-750 |
from US $11.25 |
||
|
3
|
3
12391-KYJ-901 Gasket, cyl hd cvr |
12391-KYJ-901 |
from US $14.96 |
||
|
4
|
4
18601-KEA-741 Valve, reed |
18601-KEA-741 |
from US $15.78 |
||
|
5
|
5
18612-KYJ-900 Cover, reed valve |
18612-KYJ-900 |
from US $10.39 |
||
|
6
|
6
90002-KGH-900 Bolt, flange (5x14) |
90002-KGH-900 |
from US $1.48 |
||
|
7
|
7
90018-KYJ-900 Bolt, head cover |
90018-KYJ-900 |
from US $3.21 |
||
|
8
|
8
90543-MV9-670 Rubber, setting |
90543-MV9-670 |
from US $1.15 |
||
|
9
|
9
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
