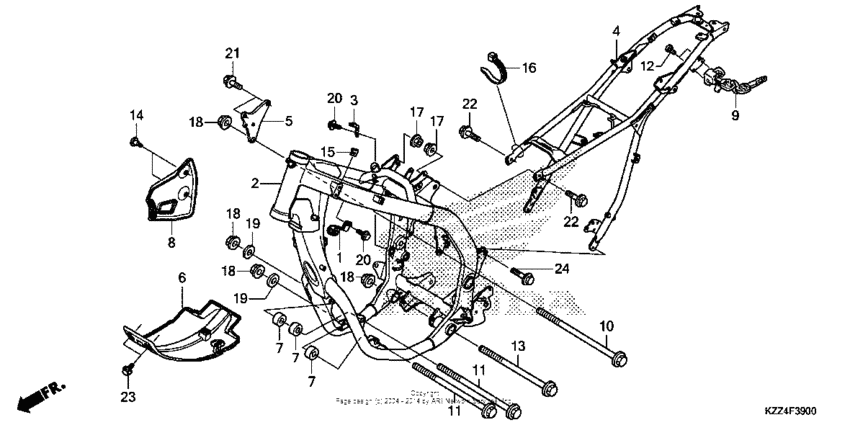

Frame Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32111-KZZ-900 Clamp, harness |
32111-KZZ-900 |
from US $3.55 |
||
|
2
|
2
50100-KZZ-900ZB Frame *nh146m*Extreme red R292R; |
50100-KZZ-900ZB |
from US $667.66 |
||
|
3
|
3
50175-KZZ-900 Stay, stop switch |
50175-KZZ-900 |
from US $2.35 |
||
|
4
|
4
50200-KZZ-900ZB Frame, rr. *nh146m*Extreme red R292R; |
50200-KZZ-900ZB |
from US $235.98 |
||
|
5
|
5
50351-KZZ-900 Plate, r. eng hgr |
50351-KZZ-900 |
from US $10.49 |
||
|
6
|
6
50355-KZZ-900 Plate, skid |
50355-KZZ-900 |
from US $22.75 |
||
|
7
|
7
50361-KZZ-900 Collar, eng hgr |
50361-KZZ-900 |
from US $3.45 |
||
|
8
|
8
50615-KZZ-900 Guard, heel |
50615-KZZ-900 |
from US $6.07 |
||
|
9
|
9
50710-KCZ-J71 Holder assy., helmet |
50710-KCZ-J71 |
from US $34 |
||
|
10
|
10
90102-KZZ-900 Bolt, flg (10x150) |
90102-KZZ-900 |
from US $4.81 |
||
|
11
|
11
90104-HP6-A00 Bolt, flg (10x140) |
90104-HP6-A00 |
from US $8.39 |
||
|
12
|
12
90105-KGA-B00 BoltONE-WAY, 6X10 |
90105-KGA-B00 |
from US $2.59 |
||
|
13
|
13
90127-KR3-000 Bolt, flg (10x130) |
90127-KR3-000 |
from US $4.97 |
||
|
14
|
14
90133-KPP-T00 Screw, pan (6x14) |
90133-KPP-T00 |
from US $1.89 |
||
|
15
|
15
90201-KPR-901 Nut, clip (6mm) |
90201-KPR-901 |
from US $2.15 |
||
|
17
|
17
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
18
|
18
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
19
|
19
94101-10800 WasherPLAIN, 10MM |
94101-10800 |
from US $0.52 |
||
|
20
|
20
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
21
|
21
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
|
22
|
22
95701-0801800 Bolt, flange, 8x18 |
95701-0801800 |
from US $0.59 |
||
|
23
|
23
96300-060-100-8 Bolt flange dr 6x |
96300-060-100-8 |
from US $0.59 |
||
|
24
|
24
96300-0802000 Bolt, flange (8x20) |
96300-0802000 |
from US $0.74 |
