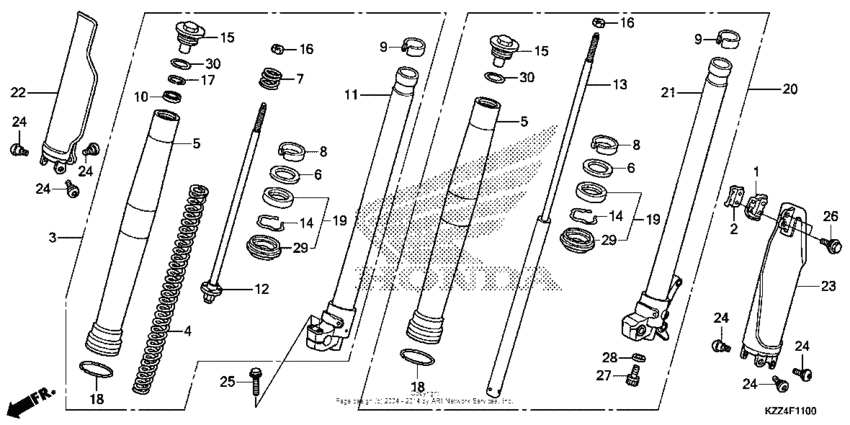

Front fork Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45461-KZZ-900 Clamp a, brake hose |
45461-KZZ-900 |
from US $2.09 |
||
|
2
|
2
45462-KZZ-900 Clamp b, brake hose |
45462-KZZ-900 |
from US $2.91 |
||
|
3
|
3
51400-KZZ-305 Fork assy., r. fr. |
51400-KZZ-305 |
from US $788.15 |
||
|
4
|
4
51401-KZZ-901 Spring, fr. fork |
51401-KZZ-901 |
from US $41.07 |
||
|
5
|
5
51410-KZZ-901 Tube (outer) |
51410-KZZ-901 |
from US $310.08 |
||
|
6
|
6
51412-KA4-711 Ring, back-up |
51412-KA4-711 |
from US $6.81 |
||
|
7
|
7
51412-KZZ-901 Spring, rebound |
51412-KZZ-901 |
from US $5.18 |
||
|
8
|
8
51414-MFN-D01 Bush, guide |
51414-MFN-D01 |
from US $6.16 |
||
|
9
|
9
51415-MGP-D01 Bush, slider |
51415-MGP-D01 |
from US $12.82 |
||
|
10
|
10
51419-KZZ-901 Seat, stopper |
51419-KZZ-901 |
from US $3.11 |
||
|
11
|
11
51425-KZZ-901 Pipe, r. slide |
51425-KZZ-901 |
from US $244.80 |
||
|
12
|
12
51426-KZZ-901 Rod |
51426-KZZ-901 |
from US $65.01 |
||
|
13
|
13
51430-KZZ-901 Damper, fr. |
51430-KZZ-901 |
from US $210.80 |
||
|
14
|
14
51447-KA4-711 Ring |
51447-KA4-711 |
from US $3.18 |
||
|
15
|
15
51450-KZZ-901 Bolt, fr. fork |
51450-KZZ-901 |
from US $26.42 |
||
|
16
|
16
51451-MAJ-G41 Nut, hex. (10mm) |
51451-MAJ-G41 |
from US $1.70 |
||
|
17
|
17
51456-KZZ-901 Ring, stopper |
51456-KZZ-901 |
from US $2.15 |
||
|
18
|
18
51476-KZZ-901 Ring, wear |
51476-KZZ-901 |
from US $3.51 |
||
|
19
|
19
51490-MFL-003 Seal set, fr. fork |
51490-MFL-003 |
from US $18.56 |
||
|
20
|
20
51500-KZZ-305 Fork Assy., L. Fr. |
51500-KZZ-305 |
from US $792.72 |
||
|
21
|
21
51525-KZZ-901 Pipe, l. slide |
51525-KZZ-901 |
from US $257.04 |
||
|
22
|
22
51610-KZZ-900ZC Protr, r. (type1)Extreme red R292R; |
51610-KZZ-900ZC |
from US $30.86 |
||
|
23
|
23
51620-KZZ-900ZC Protr, l. (type1)Extreme red R292R; |
51620-KZZ-900ZC |
from US $30.86 |
||
|
24
|
24
90106-KZZ-900 Bolt (6mm) |
90106-KZZ-900 |
from US $1.09 |
||
|
25
|
25
90108-KZZ-900 Bolt, flange (8x40) |
90108-KZZ-900 |
from US $1.05 |
||
|
26
|
26
90113-KZZ-900 Bolt, flange (6mm) |
90113-KZZ-900 |
from US $0.80 |
||
|
27
|
27
90116-KV3-701 Bolt, socket (8mm) |
90116-KV3-701 |
from US $1.55 |
||
|
28
|
28
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
29
|
29
91254-MEJ-003 Dust seal |
91254-MEJ-003 |
from US $11.88 |
||
| replacement | |||||
|
29
|
29
91254-MEJ-013 DUST SEAL |
91254-MEJ-013 |
from US $12.88 |
||
|
30
|
30
91356-KZ3-003 O-ring (44.7x2.4) |
91356-KZ3-003 |
from US $1.82 |
||
