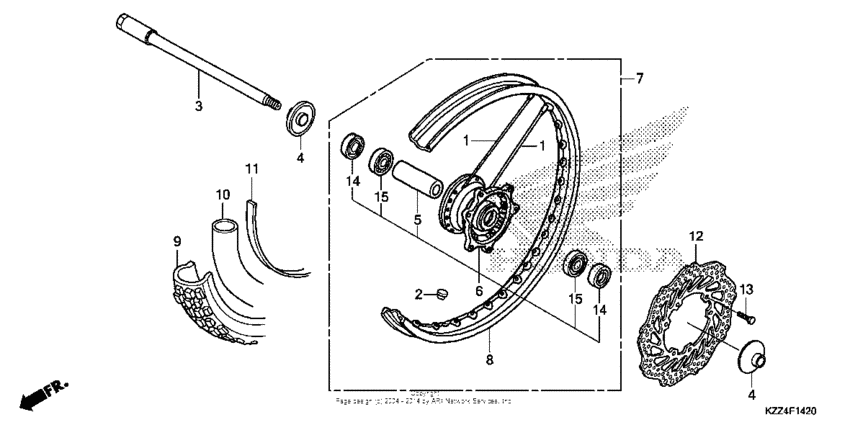

Front wheel Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06440-KZZ-900 Spoke set, fr. |
06440-KZZ-900 |
from US $3.38 |
||
|
2
|
2
42717-329-000 Cap, rim hole |
42717-329-000 |
from US $4.40 |
||
|
3
|
3
44301-KZZ-900 Axle, fr. wheel |
44301-KZZ-900 |
from US $32.37 |
||
|
4
|
4
44310-KZZ-900 Colr, fr. wheel side |
44310-KZZ-900 |
from US $10.98 |
||
|
5
|
5
44620-KZZ-900 Collar, fr |
44620-KZZ-900 |
from US $6.96 |
||
|
6
|
6
44635-KZZ-900 Hub sub-assy., fr. |
44635-KZZ-900 |
from US $88.09 |
||
|
7
|
7
44650-KZZ-900 Wheel sub-assy., fr. |
44650-KZZ-900 |
from US $596.43 |
||
|
8
|
8
44701-KZZ-901 Rim, fr. (21x1.60) |
44701-KZZ-901 |
from US $208.45 |
||
| replacement | |||||
|
8
|
8
44701-KZZ-902 Rim, Fr. (21X1.60) |
44701-KZZ-902 |
US $271.68 |
||
|
9
|
9
44711-KZZ-901 Tire (3.00-21 51p) |
44711-KZZ-901 |
US $147.14 |
||
| replacements | |||||
|
9
|
9
44711-KZZ-902 TIRE (3.00-21 51P) |
44711-KZZ-902 |
US $114.21 |
||
|
9
|
9
44711-KZZ-904 Tire (3.00-21 51p) |
44711-KZZ-904 |
US $127.45 |
||
|
10
|
10
44712-446-631
Tube (2.75/3.00-21)
|
44712-446-631 |
— | ||
|
11
|
11
44713-KZZ-901 Flap, tire |
44713-KZZ-901 |
from US $3.63 |
||
|
12
|
12
45351-KZZ-901 Disk, fr. brake |
45351-KZZ-901 |
from US $72.98 |
||
|
13
|
13
90105-KZZ-900 Bolt, disk (6x17) |
90105-KZZ-900 |
from US $0.97 |
||
|
14
|
14
91251-KZZ-901 Dust seal (23x35x5) |
91251-KZZ-901 |
from US $3.16 |
||
|
15
|
15
96140-6202010 Bearing (6202u) |
96140-6202010 |
from US $6.51 |
||
