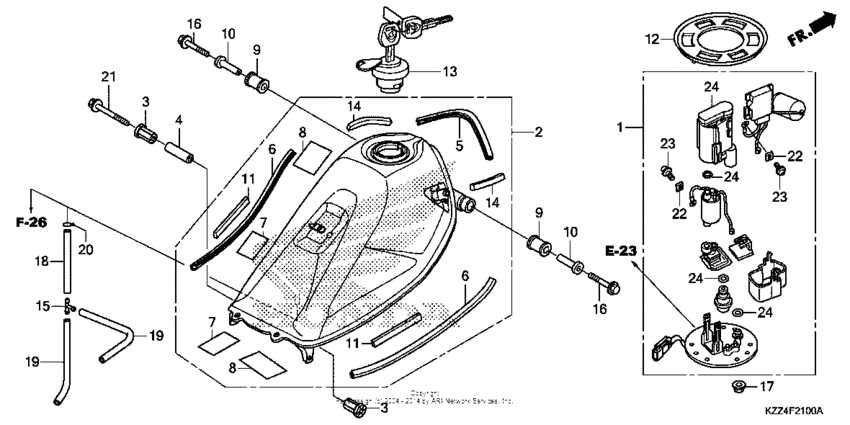

Fuel tank Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16700-KZZ-901 Pump Assy., Fuel |
16700-KZZ-901 |
US $576.64 |
||
| replacement | |||||
|
1
|
1
16700-KZZ-903 Pump Assy., Fuel |
16700-KZZ-903 |
US $566.46 |
||
|
2
|
2
17500-KZZ-900ZB Tank, fuel *nh105*Extreme red R292R; |
17500-KZZ-900ZB |
from US $210 |
||
|
3
|
3
17506-KZZ-900 Cushion |
17506-KZZ-900 |
from US $2.99 |
||
|
4
|
4
17507-KZZ-900 Collar, tank set |
17507-KZZ-900 |
from US $2.16 |
||
|
5
|
5
17516-KZZ-900 Trim a, fuel tank |
17516-KZZ-900 |
US $9.08 |
||
|
6
|
6
17517-KZZ-900 Trim b, fuel tank |
17517-KZZ-900 |
from US $6.07 |
||
|
7
|
7
17521-KY1-300 Seal, tank |
17521-KY1-300 |
from US $2.66 |
||
|
8
|
8
17528-KCZ-930 Tape b, tank guard |
17528-KCZ-930 |
from US $3.73 |
||
|
9
|
9
17534-MFJ-D00 Rubber, rr |
17534-MFJ-D00 |
from US $3.48 |
||
|
10
|
10
17538-KZZ-900 Collar |
17538-KZZ-900 |
from US $3.23 |
||
|
11
|
11
17544-KZZ-900 Rubber, tank guard |
17544-KZZ-900 |
from US $1.26 |
||
|
12
|
12
17574-KZZ-910 Gasket, base |
17574-KZZ-910 |
US $42.82 |
||
|
13
|
13
17620-MEG-003 Cap comp.FUEL FILLER (HONDA LOCK) |
17620-MEG-003 |
from US $53.18 |
||
|
14
|
14
17850-KZZ-900 Cushion, shroud |
17850-KZZ-900 |
from US $1.39 |
||
|
16
|
16
90004-GHB-710 Bolt, flange (6x40) |
90004-GHB-710 |
from US $2.44 |
||
|
17
|
17
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
21
|
21
96001-060-650-0 BoltFLANGE, 6X65 |
96001-060-650-0 |
from US $0.89 |
||
|
22
|
22
16711-MGS-D31 Stopper |
16711-MGS-D31 |
US $6.99 |
||
|
23
|
23
16712-MGS-D31 Screw (4x6.6) |
16712-MGS-D31 |
from US $1.62 |
||
|
24
|
24
16730-MGS-D31 Filter assy., fuel |
16730-MGS-D31 |
US $44.49 |
||
| replacement | |||||
|
24
|
24
16730-MKT-D01 FILTER ASSY., FUEL |
16730-MKT-D01 |
from US $43.07 |
||
