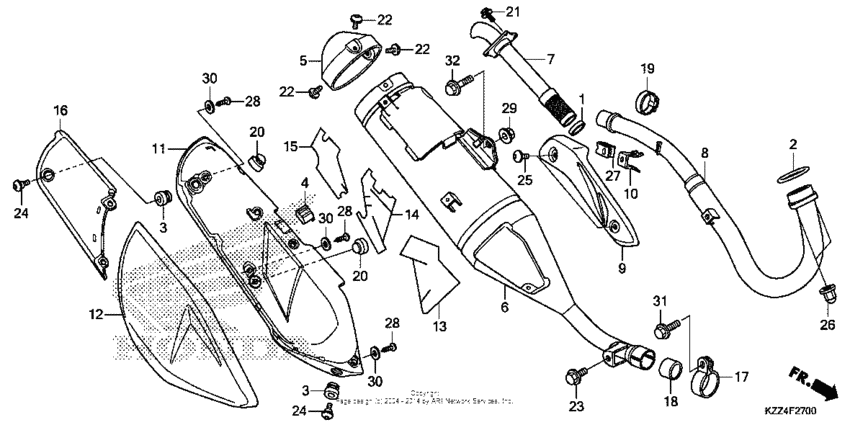

Muffler Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-KR1-680 Gasket a, ex. pipe |
18291-KR1-680 |
from US $6.36 |
||
|
2
|
2
18291-MEB-670 Gasket, ex. pipe |
18291-MEB-670 |
from US $5.48 |
||
|
3
|
3
18293-KZZ-900 Rubber |
18293-KZZ-900 |
from US $1.99 |
||
|
4
|
4
18293-MN0-000 Rubber, protector |
18293-MN0-000 |
from US $3.11 |
||
|
5
|
5
18306-KZZ-900 Cap, tail |
18306-KZZ-900 |
from US $31.67 |
||
|
6
|
6
18310-KZZ-305 Muffler |
18310-KZZ-305 |
from US $827.24 |
||
|
7
|
7
18317-KZZ-305 Arrester, spark |
18317-KZZ-305 |
from US $56.88 |
||
|
8
|
8
18320-KZZ-900 Pipe, ex. |
18320-KZZ-900 |
from US $121.04 |
||
|
9
|
9
18325-KZZ-900 Protector, ex. pipe |
18325-KZZ-900 |
from US $36.01 |
||
|
10
|
10
18327-KZZ-900 Stay |
18327-KZZ-900 |
from US $3.70 |
||
|
11
|
11
18355-KZZ-900 Protector, muffler |
18355-KZZ-900 |
from US $86.65 |
||
|
12
|
12
18360-KZZ-900ZB Cover, fr. *nh196*Extreme red R292R; |
18360-KZZ-900ZB |
from US $40.39 |
||
|
13
|
13
18361-KZZ-900 Guard, heat |
18361-KZZ-900 |
from US $3.03 |
||
|
14
|
14
18362-KZZ-900 Guard, heat |
18362-KZZ-900 |
from US $6.66 |
||
|
15
|
15
18363-KZZ-900 Guard, heat |
18363-KZZ-900 |
from US $5.90 |
||
|
16
|
16
18365-KZZ-900 Cover, rr. muffler |
18365-KZZ-900 |
from US $14.20 |
||
|
17
|
17
18373-KZZ-900 Band, r. ex. pipe |
18373-KZZ-900 |
from US $20.40 |
||
|
18
|
18
18391-KZZ-901 Gasket, muffler |
18391-KZZ-901 |
from US $9.78 |
||
|
19
|
19
19517-ML7-691 Clamp, hose (22-29) |
19517-ML7-691 |
from US $7.25 |
||
|
20
|
20
83512-KZZ-900 Rubber |
83512-KZZ-900 |
from US $1.92 |
||
|
21
|
21
90101-KCE-000 Bolt, flange (6x10) |
90101-KCE-000 |
US $2.44 |
||
| replacement | |||||
|
21
|
21
96001-060-100-7 BoltFLANGE, 6X10 |
96001-060-100-7 |
from US $0.52 |
||
|
22
|
22
90114-KZZ-900 Screw (5x10) |
90114-KZZ-900 |
from US $1.09 |
||
|
23
|
23
90118-KZZ-900 Bolt, flange (8x16) |
90118-KZZ-900 |
from US $1.55 |
||
|
24
|
24
90160-KZZ-900 Bolt (5mm) |
90160-KZZ-900 |
from US $1.70 |
||
|
25
|
25
90170-KZZ-900 Screw, pan (6x10) |
90170-KZZ-900 |
from US $1.39 |
||
|
26
|
26
90304-KPH-700 Nut,hex cap 8mm |
90304-KPH-700 |
from US $2.33 |
||
|
27
|
27
90344-964-003 Nut, clip, 6mm |
90344-964-003 |
from US $3.70 |
||
|
28
|
28
93913-142J0 ScrewTAPPING, 4X12 |
93913-142J0 |
from US $1.11 |
||
|
29
|
29
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
30
|
30
9410304000 Washer, plain, 4mm |
9410304000 |
from US $0.37 |
||
|
31
|
31
95701-0803502 Bolt, flange, 8x35 |
95701-0803502 |
from US $0.89 |
||
|
32
|
32
96300-0804000 Bolt, flange (8x40) |
96300-0804000 |
from US $0.81 |
||
