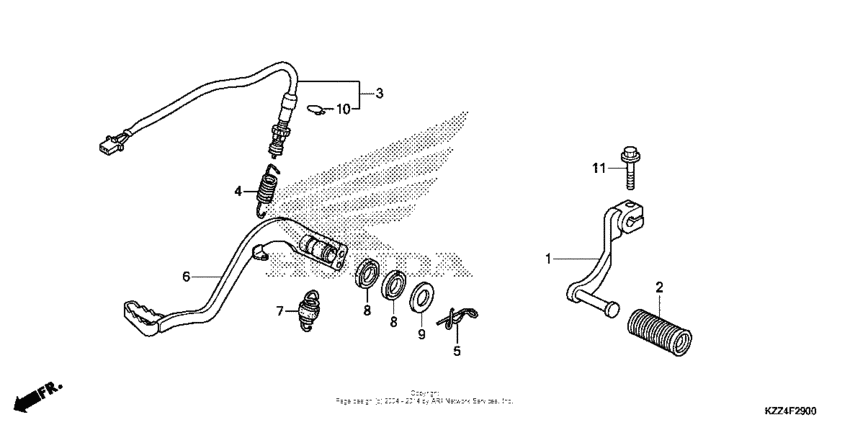

Pedal Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24710-KZZ-305 Pedal, gearshift |
24710-KZZ-305 |
US $19.07 |
||
|
2
|
2
24781-KR3-770 Rubber, change pedal |
24781-KR3-770 |
from US $3.48 |
||
|
3
|
3
35350-KZZ-901 Switch, rr. stop |
35350-KZZ-901 |
from US $14.99 |
||
| replacement | |||||
|
3
|
3
35350-KZZ-902 SWITCH, RR. STOP |
35350-KZZ-902 |
US $19.86 |
||
|
4
|
4
35357-KZZ-900 Spring, stop switch |
35357-KZZ-900 |
from US $2.09 |
||
|
5
|
5
43950-KZZ-900 Pin, snap |
43950-KZZ-900 |
from US $3.11 |
||
|
6
|
6
46500-KZZ-305 Pedal, rr. brake |
46500-KZZ-305 |
US $19.02 |
||
|
7
|
7
46511-KZ4-J00 Spring assy., rr. |
46511-KZ4-J00 |
from US $3.47 |
||
|
8
|
8
46525-KK0-003 Dust seal |
46525-KK0-003 |
from US $2.30 |
||
|
9
|
9
90439-463-000 Washer, plain, 16mm |
90439-463-000 |
US $2.43 |
||
|
10
|
10
90601-KAF-003 Clip, switch cover |
90601-KAF-003 |
from US $1.92 |
||
|
11
|
11
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
