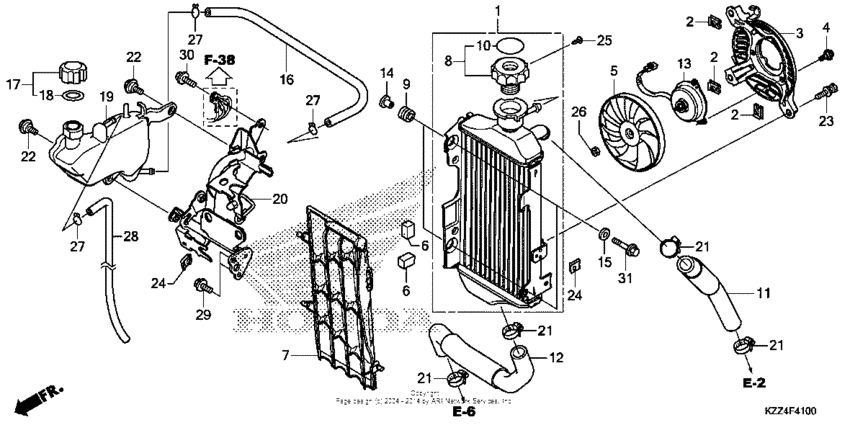

Radiator Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-KZZ-305 Radiator |
19010-KZZ-305 |
US $209.90 |
||
|
2
|
2
19014-KEA-003 Nut, set |
19014-KEA-003 |
from US $2.25 |
||
|
3
|
3
19015-KZZ-901 Shroud |
19015-KZZ-901 |
US $34.82 |
||
| replacement | |||||
|
3
|
3
19015-KZZ-902 SHROUD |
19015-KZZ-902 |
from US $9.83 |
||
|
4
|
4
19016-KEA-003 Screw, pan (4x8.5) |
19016-KEA-003 |
from US $1.70 |
||
|
5
|
5
19020-KVZ-631 Fan, cooling |
19020-KVZ-631 |
from US $35.75 |
||
|
6
|
6
19022-KZZ-900 Rubber, radiator |
19022-KZZ-900 |
from US $1.85 |
||
|
7
|
7
19034-KZZ-900 Grille, radiator |
19034-KZZ-900 |
from US $17.61 |
||
|
8
|
8
19045-KPC-D51 Cap, radiator |
19045-KPC-D51 |
from US $27.28 |
||
|
9
|
9
19051-KRN-000 Rubber |
19051-KRN-000 |
from US $3.26 |
||
|
10
|
10
19055-KPC-D51 Seal, radiator cap |
19055-KPC-D51 |
from US $4.29 |
||
|
11
|
11
19062-KZZ-900 Hose, radiator |
19062-KZZ-900 |
from US $21.05 |
||
|
12
|
12
19067-KZZ-900 Hose, radiator |
19067-KZZ-900 |
from US $14.50 |
||
|
13
|
13
19080-KZZ-901 Motor assy., fan |
19080-KZZ-901 |
from US $64.41 |
||
|
14
|
14
19091-KZZ-900 Collar |
19091-KZZ-900 |
from US $1.82 |
||
|
15
|
15
19092-KZZ-900 Washer |
19092-KZZ-900 |
from US $1.33 |
||
|
16
|
16
19101-KZZ-900 Tube, reserve tank |
19101-KZZ-900 |
from US $14.13 |
||
|
17
|
17
19105-KZZ-900 Cap, reserve tank |
19105-KZZ-900 |
from US $7.38 |
||
|
18
|
18
19107-MG8-000 Gasket, reserve tank |
19107-MG8-000 |
from US $2.66 |
||
|
19
|
19
19110-KZZ-900 Tk, radiator reserve |
19110-KZZ-900 |
from US $10.25 |
||
|
20
|
20
19150-KZZ-900 Stay, reserve tank |
19150-KZZ-900 |
from US $32.23 |
||
|
21
|
21
19517-ML7-691 Clamp, hose (22-29) |
19517-ML7-691 |
from US $7.25 |
||
|
22
|
22
90110-KZZ-900 Bolt, flange (6mm) |
90110-KZZ-900 |
from US $1.09 |
||
|
23
|
23
90120-KCR-003 Bolt-washer (6x16) |
90120-KCR-003 |
from US $2.74 |
||
|
24
|
24
90201-KPR-901 Nut, clip (6mm) |
90201-KPR-901 |
from US $2.15 |
||
|
25
|
25
93901-22020 ScrewTAPPING, 3X6 |
93901-22020 |
from US $0.37 |
||
|
26
|
26
94001-030000S Nut, hex., 3mm |
94001-030000S |
from US $0.37 |
||
|
27
|
27
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
28
|
28
95005-550-0320M Bulk hose (5.5mm x 3000mm)Length 3000mm |
95005-550-0320M |
from US $24.48 |
||
|
29
|
29
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
30
|
30
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
31
|
31
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
