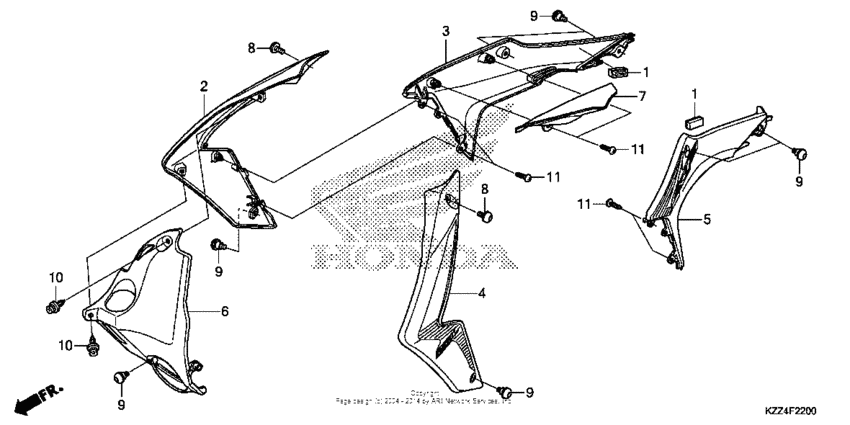

Radiator shroud Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19050-KZZ-900 Fastener (11x28) |
19050-KZZ-900 |
from US $2.99 |
||
|
2
|
2
19070-KZZ-900ZD Shroud set (type1)Extreme red R292R; |
19070-KZZ-900ZD |
from US $40.41 |
||
|
3
|
3
19075-KZZ-900ZD Shroud set (type1)Extreme red R292R; |
19075-KZZ-900ZD |
from US $34.51 |
||
|
4
|
4
19090-KZZ-900ZD Shroud set (type1)Extreme red R292R; |
19090-KZZ-900ZD |
from US $44.81 |
||
|
5
|
5
19095-KZZ-900ZD Shroud set (type1)Extreme red R292R; |
19095-KZZ-900ZD |
from US $35.68 |
||
|
6
|
6
19160-KZZ-900 Cover, fr. |
19160-KZZ-900 |
from US $12.60 |
||
|
7
|
7
19170-KZZ-900 Cover, rr |
19170-KZZ-900 |
from US $7.10 |
||
|
8
|
8
90132-KPP-T00 Screw, pan (6x10) |
90132-KPP-T00 |
from US $1.29 |
||
|
9
|
9
90133-KPP-T00 Screw, pan (6x14) |
90133-KPP-T00 |
from US $1.89 |
||
|
10
|
10
90683-MBW-003 Clip, body |
90683-MBW-003 |
from US $1.55 |
||
|
11
|
11
93903-24320 ScrewTAPPING, 4X12 |
93903-24320 |
from US $0.13 |
