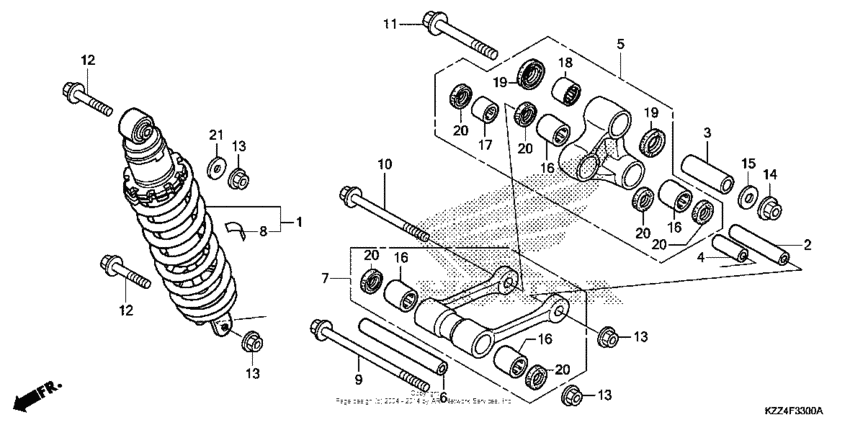

Rear shock absorber Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-KZZ-305 Cushion assy., rr. |
52400-KZZ-305 |
US $367.49 |
||
|
2
|
2
52462-KPS-900 Collar a |
52462-KPS-900 |
from US $9.44 |
||
|
3
|
3
52462-KZZ-900 Collar c |
52462-KZZ-900 |
from US $5.33 |
||
|
4
|
4
52464-KPE-900 Collar c |
52464-KPE-900 |
from US $7.62 |
||
|
5
|
5
52465-KZZ-900 Arm sub-assy. |
52465-KZZ-900 |
from US $182.61 |
||
|
6
|
6
52472-KZZ-900 Collar, conn rod |
52472-KZZ-900 |
from US $8.44 |
||
|
7
|
7
52475-KZZ-900 Rod sub-assy. |
52475-KZZ-900 |
from US $111.16 |
||
|
8
|
8
87516-KV6-610 Label, rr. |
87516-KV6-610 |
from US $2.96 |
||
|
9
|
9
90151-KZZ-900 Bolt, flg (10x127) |
90151-KZZ-900 |
from US $3.70 |
||
|
10
|
10
90152-KZZ-900 Bolt, flg (10x103) |
90152-KZZ-900 |
from US $3.40 |
||
|
11
|
11
90153-KZZ-900 Bolt, flange (12x88) |
90153-KZZ-900 |
from US $3.85 |
||
|
12
|
12
90154-KZZ-900 Bolt, flange (10x53) |
90154-KZZ-900 |
from US $2.55 |
||
|
13
|
13
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
14
|
14
90305-KZZ-901 Nut, u (12mm) |
90305-KZZ-901 |
from US $3.55 |
||
|
15
|
15
90501-KZ4-J40 Washer, plain (12mm) |
90501-KZ4-J40 |
from US $2.59 |
||
|
16
|
16
91071-KV3-005 Bearing, needle(17x24x25) |
91071-KV3-005 |
from US $6.70 |
||
|
17
|
17
91071-MY1-005 Bearing (17x24x17) |
91071-MY1-005 |
from US $7.11 |
||
|
18
|
18
91072-MY1-005 Bearing (20x26x20) |
91072-MY1-005 |
from US $10.48 |
||
|
19
|
19
91254-KS6-003 Dust seal |
91254-KS6-003 |
from US $2.99 |
||
|
20
|
20
91262-KV3-831 Dust seal (17x24x5) |
91262-KV3-831 |
from US $2.83 |
||
|
21
|
21
94101-10800 WasherPLAIN, 10MM |
94101-10800 |
from US $0.52 |
