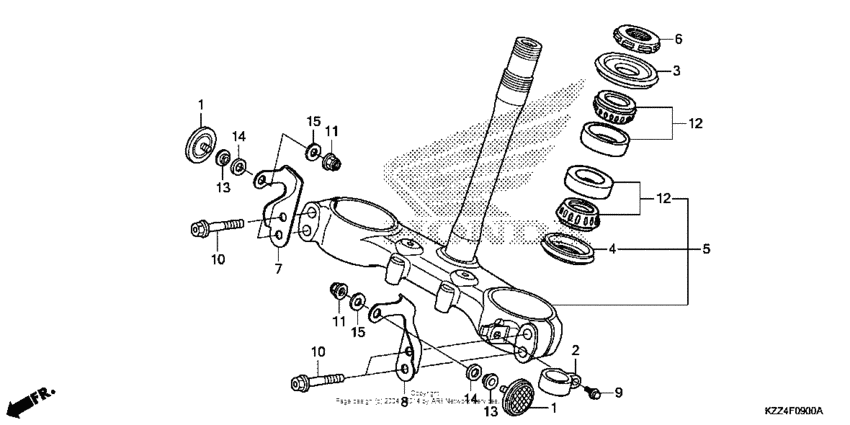

Steering stem Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-KTG-U01 Reflex refl fr |
33741-KTG-U01 |
from US $7.55 |
||
|
2
|
2
45468-KZZ-900 Guide, fr. |
45468-KZZ-900 |
from US $6.81 |
||
|
3
|
3
53214-KZZ-901 Dust seal, steering |
53214-KZZ-901 |
from US $4.68 |
||
|
4
|
4
53214-MCJ-751 Dust seal |
53214-MCJ-751 |
from US $4.88 |
||
|
5
|
5
53219-KZZ-900 Stem sub-assy., strg |
53219-KZZ-900 |
from US $141.56 |
||
|
6
|
6
53229-MN1-650 Thread |
53229-MN1-650 |
from US $12.90 |
||
|
7
|
7
60114-KZZ-910 Bracket, r |
60114-KZZ-910 |
US $24.31 |
||
|
8
|
8
60115-KZZ-910 Bracket, l |
60115-KZZ-910 |
US $24.31 |
||
|
9
|
9
90113-KZZ-900 Bolt, flange (6mm) |
90113-KZZ-900 |
from US $0.80 |
||
|
10
|
10
90155-KZZ-900 Bolt, flange (8x45) |
90155-KZZ-900 |
from US $1.16 |
||
|
11
|
11
90301-VK9-A31 Nut, u (6mm) |
90301-VK9-A31 |
US $1.28 |
||
|
12
|
12
91015-425-832 Bearing, head pipe |
91015-425-832 |
from US $21.62 |
||
|
13
|
13
61101-KZZ-910 Collar, reflector |
61101-KZZ-910 |
US $1.33 |
||
|
14
|
14
61106-KW6-840 Rubber bMOUNTING |
61106-KW6-840 |
from US $1.26 |
||
|
15
|
15
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
