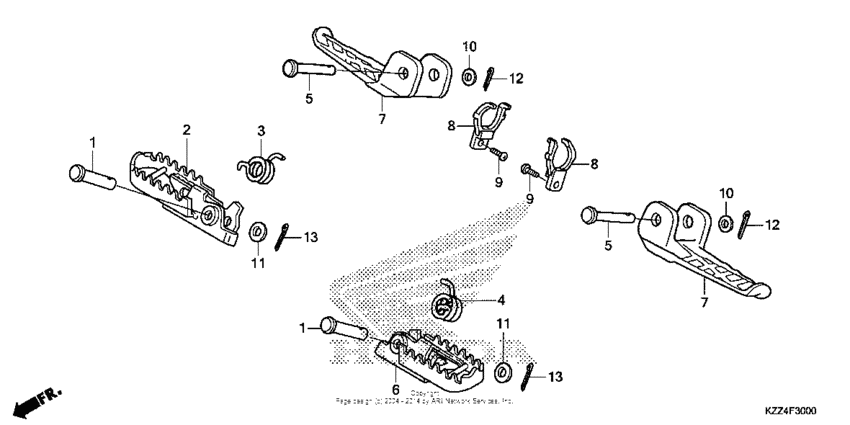

Step Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50603-KZZ-900 Pin, step joint |
50603-KZZ-900 |
from US $3.18 |
||
|
2
|
2
50616-KZZ-305 Step, r. |
50616-KZZ-305 |
US $20.93 |
||
|
3
|
3
50617-KZZ-900 Spring, r |
50617-KZZ-900 |
from US $2.89 |
||
|
4
|
4
50618-KZZ-900 Spring, l |
50618-KZZ-900 |
from US $2.89 |
||
|
5
|
5
50639-KZZ-900 Pin, step bar |
50639-KZZ-900 |
from US $2.15 |
||
|
6
|
6
50642-KZZ-305 Step, l. |
50642-KZZ-305 |
US $20.93 |
||
|
7
|
7
50711-KZZ-305 Step, pillion |
50711-KZZ-305 |
US $9.28 |
||
|
8
|
8
50713-KZZ-900 Guide, pillion step |
50713-KZZ-900 |
from US $4 |
||
|
9
|
9
90020-KZZ-900 Screw, pan (4x10) |
90020-KZZ-900 |
from US $1.38 |
||
|
10
|
10
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
11
|
11
9410210000 Washer, plain, 10mm |
9410210000 |
from US $0.44 |
||
|
12
|
12
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
13
|
13
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
13
|
13
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
13
|
13
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
13
|
13
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
13
|
13
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
