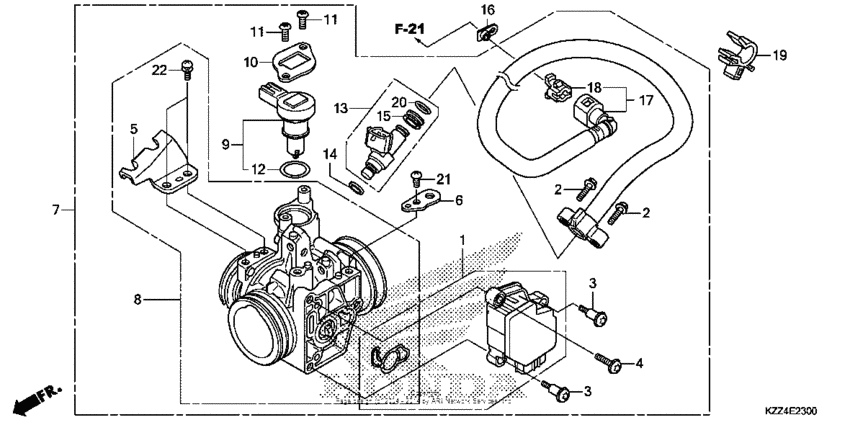

Throttle body Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16060-KYJ-901 Sensor set |
16060-KYJ-901 |
from US $88.33 |
||
|
2
|
2
16080-KPH-701 Bolt, flange (5x20) |
16080-KPH-701 |
from US $1.70 |
||
|
3
|
3
16081-KYJ-901 Screw, torx (5x8.7) |
16081-KYJ-901 |
from US $2 |
||
|
4
|
4
16082-KYJ-901 Screw, torx (5x17) |
16082-KYJ-901 |
from US $2.09 |
||
|
5
|
5
16169-MFR-671 Stay, wire |
16169-MFR-671 |
from US $16.18 |
||
|
6
|
6
16196-HP6-A01 Stay, harness clamp |
16196-HP6-A01 |
US $10.05 |
||
|
7
|
7
16400-KZZ-901 Body assy. (gq32a a) |
16400-KZZ-901 |
from US $418.88 |
||
|
8
|
8
16410-KZZ-901 Body set |
16410-KZZ-901 |
from US $85.65 |
||
|
9
|
9
16430-KYJ-901 Valve set |
16430-KYJ-901 |
from US $106.08 |
||
|
10
|
10
16432-MFE-641 Plate |
16432-MFE-641 |
from US $9.09 |
||
|
11
|
11
16433-HN8-A61 Screw, torx |
16433-HN8-A61 |
from US $0.51 |
||
|
12
|
12
16435-HN8-A61 O-ring (17.8x1.9) |
16435-HN8-A61 |
from US $2.03 |
||
|
13
|
13
16450-MFE-641 Injector assy,, fuel |
16450-MFE-641 |
from US $156.40 |
||
|
14
|
14
16472-MCW-000 Seal ring, injector |
16472-MCW-000 |
from US $2.89 |
||
|
15
|
15
16473-P7A-004 Cushion ringINJECTOR |
16473-P7A-004 |
from US $2.74 |
||
|
16
|
16
16719-MEW-920 Damper, connector |
16719-MEW-920 |
from US $3.92 |
||
|
17
|
17
17526-KZZ-901 Hose, fuel feed |
17526-KZZ-901 |
from US $47.12 |
||
|
18
|
18
17711-MGE-003 Retainer |
17711-MGE-003 |
from US $4.59 |
||
|
19
|
19
90611-KZZ-901 Clamp, hose |
90611-KZZ-901 |
from US $1.21 |
||
|
20
|
20
91301-P7A-004 O-ring |
91301-P7A-004 |
from US $1.80 |
||
|
21
|
21
93500-050-100-H ScrewPAN, 5X10 |
93500-050-100-H |
from US $0.37 |
||
|
22
|
22
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
