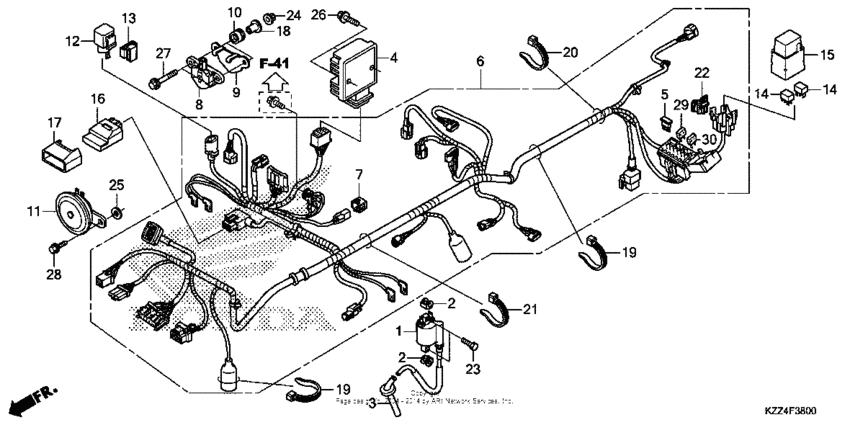

Wire harness Diagram Honda CRF250 CRF250L
- Year
- 2013
- Model code
- CRF250L AC
- Sales region
- USA
- Frame
- MLHMD381*D5000001 - MLHMD381*D5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30510-KZZ-901 Coil, ignition |
30510-KZZ-901 |
from US $45.10 |
||
|
2
|
2
30520-GFM-900 Spacer |
30520-GFM-900 |
from US $2.89 |
||
|
3
|
3
30700-KZZ-901 Cap assy. |
30700-KZZ-901 |
from US $23.53 |
||
|
4
|
4
31600-KVK-901 Rectifier, regulator |
31600-KVK-901 |
from US $175.44 |
||
|
5
|
5
31730-MAS-601 Diode assy., three way (sumitomo) |
31730-MAS-601 |
from US $11.23 |
||
|
6
|
6
32100-KZZ-910 Wire harness |
32100-KZZ-910 |
US $371.98 |
||
|
7
|
7
32606-GEV-761 Cap, dummy (4p) |
32606-GEV-761 |
from US $4.29 |
||
|
8
|
8
35160-KVS-751 New Genuine Part |
35160-KVS-751 |
from US $76.16 |
||
|
9
|
9
35161-KZZ-900 Stay |
35161-KZZ-900 |
from US $3.45 |
||
|
10
|
10
37244-MM4-000 Rubber |
37244-MM4-000 |
from US $3.92 |
||
|
11
|
11
38110-KYJ-901 Horn |
38110-KYJ-901 |
from US $30.33 |
||
|
12
|
12
38301-KYJ-641 Relay, turn signal |
38301-KYJ-641 |
from US $45.56 |
||
|
13
|
13
38306-GE7-000 Suspension |
38306-GE7-000 |
from US $4.88 |
||
|
14
|
14
38501-KWN-901 Relay comp,micro |
38501-KWN-901 |
from US $9.20 |
||
|
15
|
15
38506-KZZ-900 Cover, relay (2p) |
38506-KZZ-900 |
from US $3.85 |
||
|
16
|
16
38770-KZZ-913 Unit comp,pgm-fi/ign |
38770-KZZ-913 |
US $184.01 |
||
| replacement | |||||
|
16
|
16
38770-KZZ-914 Pgm-fi unit |
38770-KZZ-914 |
US $249.36 |
||
|
17
|
17
38771-KZZ-900 Suspension |
38771-KZZ-900 |
from US $2.58 |
||
|
18
|
18
77302-473-000 Collar, pillion seat |
77302-473-000 |
from US $3.77 |
||
|
19
|
19
90651-KV6-003 Band, wire, 165mm (black) |
90651-KV6-003 |
from US $2.96 |
||
|
20
|
20
90652-KT1-771 Band, wire (black) |
90652-KT1-771 |
from US $2.29 |
||
|
21
|
21
90679-SG9-E01 BandSUCTION HOSE(BLACK) |
90679-SG9-E01 |
from US $2.03 |
||
|
22
|
22
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $1.61 |
||
|
23
|
23
92101-06020-4J Bolt, hex., 6x20 |
92101-06020-4J |
from US $0.89 |
||
|
24
|
24
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
25
|
25
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
26
|
26
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
27
|
27
95701-060-300-0 BoltFLANGE, 6X30 |
95701-060-300-0 |
from US $0.59 |
||
|
28
|
28
95701-080-140-0 BoltFLANGE, 8X14 |
95701-080-140-0 |
from US $0.59 |
||
|
29
|
29
9820040500 Fuse, mini (5a) |
9820040500 |
from US $0.52 |
||
|
30
|
30
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
