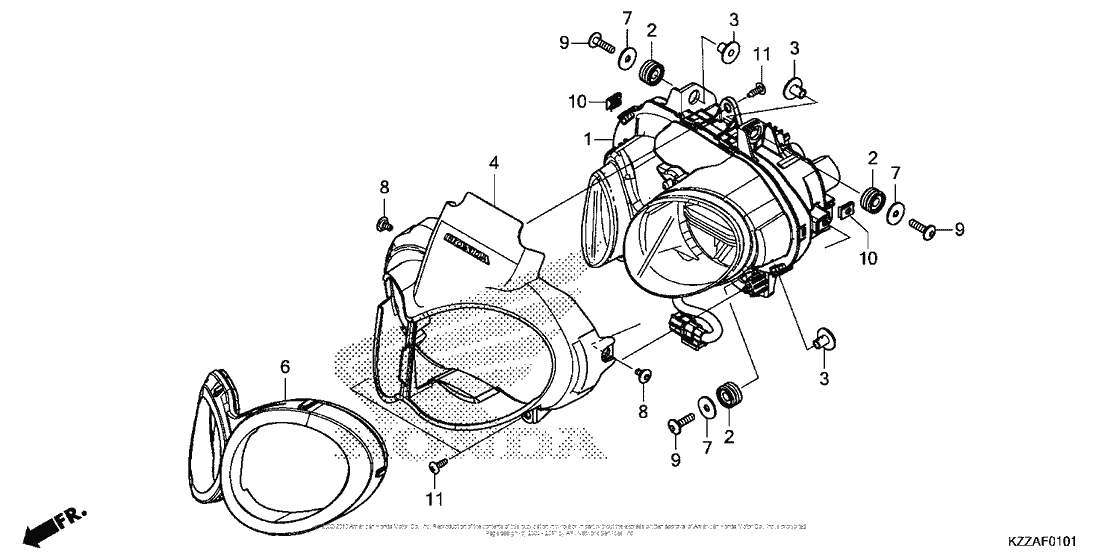

Headlight (2) Diagram Honda CRF250 CRF250RL Rally
- Year
- 2017
- Model code
- CRF250RL AC
- Sales region
- USA
- Frame
- MLHMD441 - H5000001
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-KZZ-J01 HEADLIGHT ASSY. |
33100-KZZ-J01 |
from US $871.83 |
||
|
2
|
2
61103-KZZ-J00 RUBBER, HEADLIGHT |
61103-KZZ-J00 |
from US $3.11 |
||
|
3
|
3
61104-KZZ-900 Collar |
61104-KZZ-900 |
from US $2.52 |
||
|
4
|
4
61140-KZZ-J00ZA COVER SET (TYPE1) |
61140-KZZ-J00ZA |
from US $59.31 |
||
|
6
|
6
61146-KZZ-J00 RING, HEADLIGHT |
61146-KZZ-J00 |
from US $27.74 |
||
|
7
|
7
77302-KW7-900 Washer |
77302-KW7-900 |
from US $1.28 |
||
|
8
|
8
90114-KPH-700 ScrewSPECIAL, 5X11 |
90114-KPH-700 |
from US $1.39 |
||
|
9
|
9
90185-KZZ-J00 BOLT, SPECIAL (6X24) |
90185-KZZ-J00 |
from US $1.34 |
||
|
10
|
10
90677-KAN-961 Nut, clip (5mm) |
90677-KAN-961 |
from US $2.12 |
||
|
11
|
11
93913-25480 ScrewTAPPING, 5X16 (PO) |
93913-25480 |
from US $0.37 |
