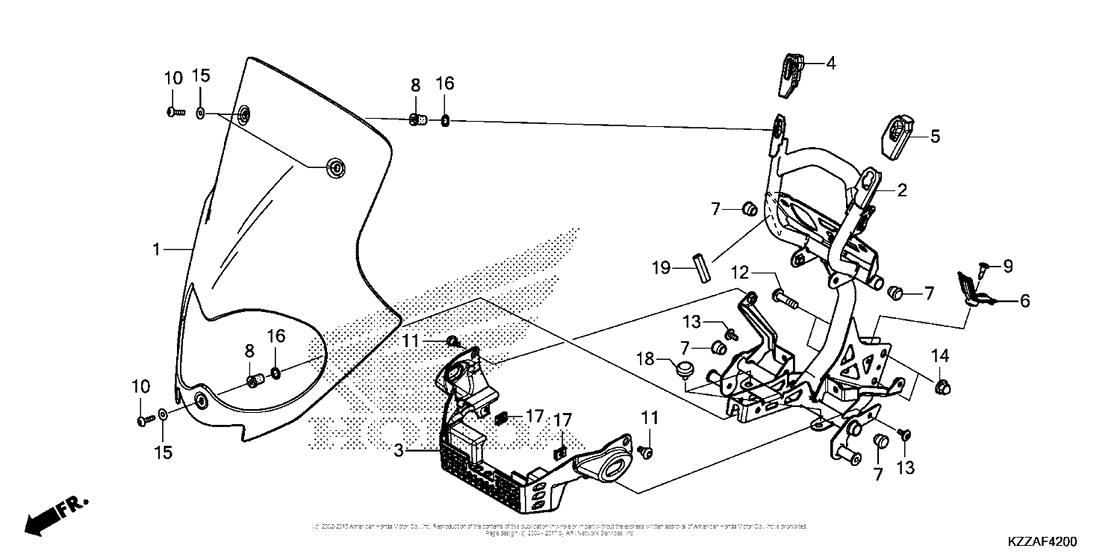

Windscreen Diagram Honda CRF250 CRF250RL Rally
- Year
- 2017
- Model code
- CRF250RL AC
- Sales region
- USA
- Frame
- MLHMD441 - H5000001
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64110-KZZ-J00 WINDSCREEN |
64110-KZZ-J00 |
US $151.47 |
||
|
2
|
2
64501-KZZ-J00 STAY, HEADLIGHT |
64501-KZZ-J00 |
US $161.50 |
||
|
3
|
3
64510-KZZ-J00 BOX, FR. |
64510-KZZ-J00 |
from US $49.91 |
||
|
4
|
4
64520-KZZ-J00 CVR, HEADLIGHT STAY |
64520-KZZ-J00 |
from US $1.85 |
||
|
5
|
5
64521-KZZ-J00 CVR, HEADLIGHT STAY |
64521-KZZ-J00 |
from US $1.85 |
||
|
6
|
6
64530-KZZ-J00 COVER, STAY |
64530-KZZ-J00 |
from US $6.36 |
||
|
7
|
7
81212-GF4-000 Cap, rr. carrier |
81212-GF4-000 |
from US $3.70 |
||
|
8
|
8
90111-KW3-003 Nut (5mm) |
90111-KW3-003 |
from US $0.45 |
||
|
9
|
9
90116-SP0-003 ClipBUMPER SEAL |
90116-SP0-003 |
from US $1.94 |
||
|
10
|
10
90117-MGZ-J80 Screw, pan (5x20) |
90117-MGZ-J80 |
from US $1.38 |
||
|
11
|
11
90122-MJK-N20 SCREW (5X11) |
90122-MJK-N20 |
from US $2.44 |
||
|
12
|
12
90128-KZZ-J00 BOLT, SOCKET (8X30) |
90128-KZZ-J00 |
from US $2.43 |
||
|
13
|
13
90154-MEE-D00 Bolt, socket (5x12) |
90154-MEE-D00 |
from US $2.29 |
||
|
14
|
14
90307-MJE-D00 New Genuine Part |
90307-MJE-D00 |
from US $1.80 |
||
|
15
|
15
90505-MY6-920 WASHER (5.4X14X0.5) |
90505-MY6-920 |
US $3.04 |
||
|
16
|
16
90507-ZV1-000 Washer, nylon, 9mm |
90507-ZV1-000 |
from US $1.04 |
||
|
17
|
17
90677-KAN-T00 Nut,clip 5mm |
90677-KAN-T00 |
from US $0.97 |
||
|
18
|
18
50505-GA7-730 Rubber, stand stopper |
50505-GA7-730 |
from US $2.22 |
