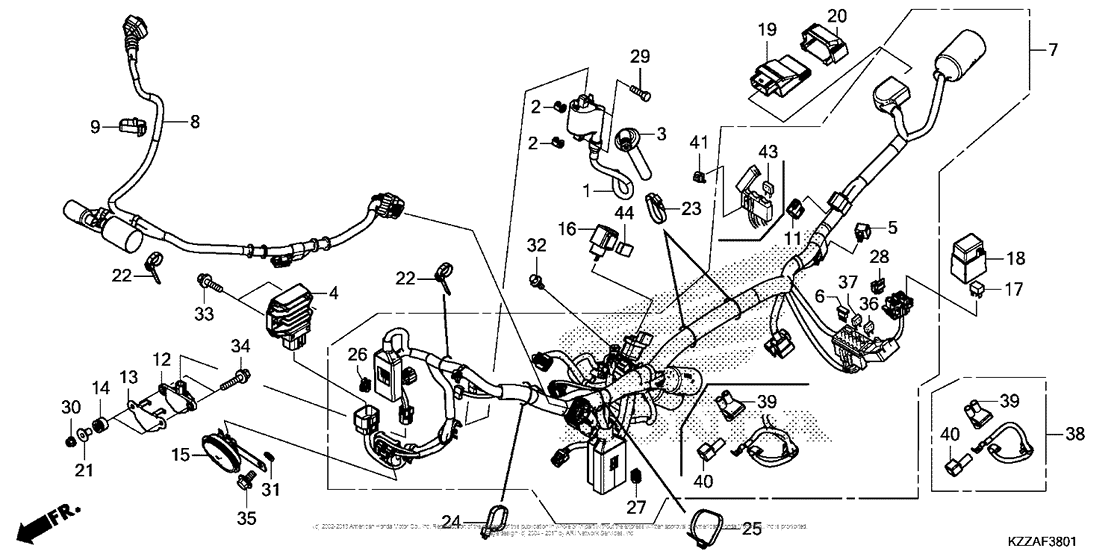

Wire Harness (2) Diagram Honda CRF250 CRF250RL Rally
- Year
- 2017
- Model code
- CRF250RL AC
- Sales region
- USA
- Frame
- MLHMD441 - H5000001
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30510-KZZ-901 Coil, ignition |
30510-KZZ-901 |
from US $45.10 |
||
|
2
|
2
30520-GFM-900 Spacer |
30520-GFM-900 |
from US $2.89 |
||
|
3
|
3
30700-KZZ-901 Cap assy. |
30700-KZZ-901 |
from US $23.53 |
||
|
4
|
4
31600-KZZ-J01 RECTIFIER, REGULATOR |
31600-KZZ-J01 |
from US $119.32 |
||
|
5
|
5
31700-MM8-610 Rectifier comp., silicon |
31700-MM8-610 |
from US $18.50 |
||
|
6
|
6
31730-MAS-601 Diode assy., three way (sumitomo) |
31730-MAS-601 |
from US $11.54 |
||
|
7
|
7
32100-KZZ-J10 WIRE HARNESS |
32100-KZZ-J10 |
US $525.66 |
||
|
8
|
8
32103-KZZ-J00 SUB-HARNESS, FR. |
32103-KZZ-J00 |
from US $47.74 |
||
|
9
|
9
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.78 |
||
|
11
|
11
32606-GEV-761 Cap, dummy (4p) |
32606-GEV-761 |
from US $4.29 |
||
|
12
|
12
35160-KVS-751 New Genuine Part |
35160-KVS-751 |
from US $76.16 |
||
|
13
|
13
35161-KZZ-900 Stay |
35161-KZZ-900 |
from US $3.45 |
||
|
14
|
14
37244-MM4-000 Rubber |
37244-MM4-000 |
from US $4.44 |
||
|
15
|
15
38110-KYJ-901 Horn |
38110-KYJ-901 |
from US $30.33 |
||
|
16
|
16
38301-KYJ-641 Relay, turn signal |
38301-KYJ-641 |
from US $45.56 |
||
|
17
|
17
38501-KWN-901 Relay comp,micro |
38501-KWN-901 |
from US $9.20 |
||
|
18
|
18
38506-KZZ-900 Cover, relay (2p) |
38506-KZZ-900 |
from US $3.85 |
||
|
19
|
19
38770-KZZ-J11 PGM-FI UNIT |
38770-KZZ-J11 |
US $215.24 |
||
|
20
|
20
38771-KTY-D30 CushionPGM-FI UNIT |
38771-KTY-D30 |
from US $2.18 |
||
|
21
|
21
77302-473-000 Collar, pillion seat |
77302-473-000 |
from US $3.77 |
||
|
22
|
22
90650-KW3-000 Band, wire |
90650-KW3-000 |
from US $3.03 |
||
|
23
|
23
90651-KV6-003 Band, wire, 165mm (black) |
90651-KV6-003 |
from US $3.11 |
||
|
24
|
24
90651-MA6-720 BandHARNESS |
90651-MA6-720 |
from US $3.26 |
||
|
25
|
25
90679-SG9-E01 BandSUCTION HOSE(BLACK) |
90679-SG9-E01 |
from US $2.03 |
||
|
26
|
26
91533-S5A-003 ClipCOUPLER (NATURAL) |
91533-S5A-003 |
from US $3.08 |
||
|
27
|
27
91534-SWA-003 ClipCOUPLER(DARK GRAY) |
91534-SWA-003 |
from US $4.14 |
||
|
28
|
28
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $2.74 |
||
|
29
|
29
92101-06020-4J Bolt, hex., 6x20 |
92101-06020-4J |
from US $0.89 |
||
|
30
|
30
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
31
|
31
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
32
|
32
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
33
|
33
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
|
34
|
34
95701-060-300-0 BoltFLANGE, 6X30 |
95701-060-300-0 |
from US $0.59 |
||
|
35
|
35
95701-080-140-0 BoltFLANGE, 8X14 |
95701-080-140-0 |
from US $0.59 |
||
|
36
|
36
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
37
|
37
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
||
|
38
|
38
32401-KZZ-900 Cable |
32401-KZZ-900 |
from US $19.86 |
||
|
39
|
39
32406-MFF-D00 CoverSTARTER MAGNETIC TERMINAL |
32406-MFF-D00 |
from US $7.25 |
||
|
40
|
40
32414-GAG-000 Cover |
32414-GAG-000 |
from US $3.40 |
||
|
44
|
44
38306-KK4-000 Suspension, winker relay (mitsuba) |
38306-KK4-000 |
from US $3.18 |
