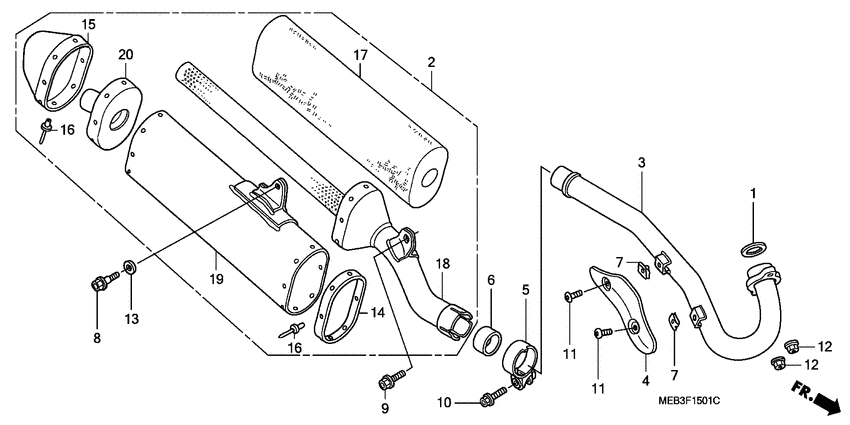

Exhaust muffler (CRF450R2-ED/U) Diagram Honda CRF450 CRF450R
- Year
- 2002
- Model code
- CRF450R2
- Sales region
- Europe
- Frame
- JH2PE05A*2M000001 - JH2PE05A*2M099999
- Engine Capacity
- 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-MEB-670 Gasket, ex. pipe |
18291-MEB-670 |
from US $5.48 |
||
|
2
|
2
18310-MEB-640 Muffler comp. |
18310-MEB-640 |
US $1,339.02 |
||
|
3
|
3
18320-MEB-670
Pipe, ex.
|
18320-MEB-670 |
— | ||
| replacement | |||||
|
3
|
3
18320-MEB-671
Pipe, ex.
|
18320-MEB-671 |
— | ||
|
4
|
4
18323-MEB-670 Protector, ex. pipe |
18323-MEB-670 |
US $50.39 |
||
|
5
|
5
18376-MG7-000 Band, l. rr. muffler |
18376-MG7-000 |
from US $14.01 |
||
|
6
|
6
18392-MEB-670 Gasket, muffler |
18392-MEB-670 |
from US $18.26 |
||
|
7
|
7
19508-KA3-710 Nut, spring, 6mm |
19508-KA3-710 |
from US $4.44 |
||
|
8
|
8
90121-KZ4-J40 Bolt, flange (8x25) |
90121-KZ4-J40 |
US $2.87 |
||
| replacement | |||||
|
8
|
8
90101-KZ3-J50 Bolt, flange (8x24) |
90101-KZ3-J50 |
from US $2.27 |
||
|
9
|
9
90123-KZ4-J40 Bolt, flange (8x18) |
90123-KZ4-J40 |
from US $2.34 |
||
|
10
|
10
90124-KZ4-J40 Bolt, flange (8x35) |
90124-KZ4-J40 |
from US $2.59 |
||
|
11
|
11
90170-MEB-670 Bolt, special (6mm) |
90170-MEB-670 |
from US $2 |
||
|
12
|
12
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
13
|
13
9410308000 Washer, plain, 8mm |
9410308000 |
from US $0.44 |
||
|
14
|
14
18311-MEB-670 Band, fr. |
18311-MEB-670 |
US $28.51 |
||
|
15
|
15
18312-MEB-640
Cap,end
|
18312-MEB-640 |
— | ||
|
16
|
16
18324-MEB-670 Rivet, blind (4.8) |
18324-MEB-670 |
from US $1.26 |
||
|
17
|
17
18336-MEB-670 Wool, glass |
18336-MEB-670 |
US $204.48 |
||
|
18
|
18
18350-MEB-670
Muffler, fr.
|
18350-MEB-670 |
— | ||
|
19
|
19
18351-MEB-640
Joint,exh pipe
|
18351-MEB-640 |
— | ||
|
20
|
20
18352-MEB-641
Muffler comp,rr
|
18352-MEB-641 |
— | ||
