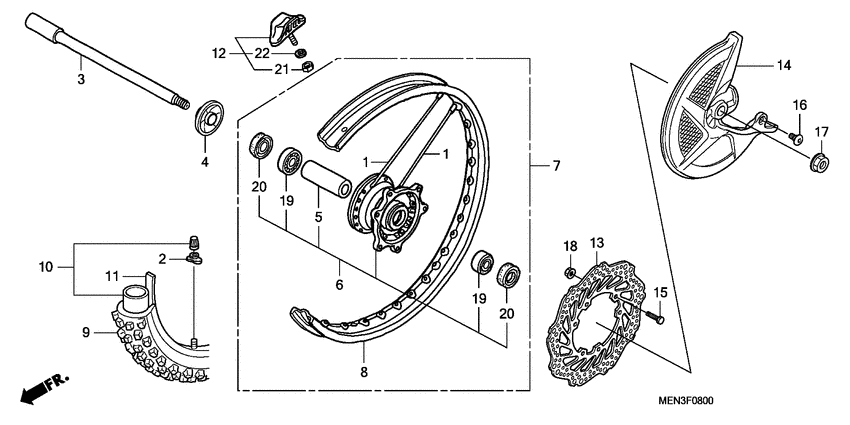

Front wheel Diagram Honda CRF450 CRF450R
- Year
- 2009
- Model code
- CRF450R9
- Sales region
- Australia
- Frame
- JH2PE05U*9K700001 - JH2PE05U*9K799999
- Engine Capacity
- 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06440-MEN-840 Spoke set (240mm) |
06440-MEN-840 |
from US $4.40 |
||
|
2
|
2
42714-KA3-710 Cap, valve |
42714-KA3-710 |
from US $6.96 |
||
|
3
|
3
44301-MEN-000 Axle, fr. wheel |
44301-MEN-000 |
from US $46.10 |
||
|
4
|
4
44312-KRN-A30 Collar, r. fr. wheel |
44312-KRN-A30 |
from US $13.74 |
||
|
5
|
5
44620-KRN-A30 Collar, fr |
44620-KRN-A30 |
from US $15.21 |
||
|
6
|
6
44635-KRN-A30 Hub sub-assy., fr. |
44635-KRN-A30 |
from US $240.77 |
||
|
7
|
7
44650-KRN-A30 Wheel sub-assy., fr. |
44650-KRN-A30 |
US $826 |
||
|
8
|
8
44701-MEN-A11 Rim, fr. (21x1.60) |
44701-MEN-A11 |
from US $261.12 |
||
|
9
|
9
44711-MEN-J01 Tire (80/100-21) |
44711-MEN-J01 |
US $159.97 |
||
|
10
|
10
44712-400-004 Tube (2.75/3.00-21) |
44712-400-004 |
US $13.55 |
||
| replacement | |||||
|
10
|
10
44712-446-631
Tube (2.75/3.00-21)
|
44712-446-631 |
— | ||
|
11
|
11
44713-KS6-641 Flap, tire |
44713-KS6-641 |
US $8.89 |
||
|
12
|
12
44715-MA0-770 Stopper, bead (1.60) |
44715-MA0-770 |
from US $29.32 |
||
|
13
|
13
45351-KRN-A30 Disk, fr. brake |
45351-KRN-A30 |
from US $161.84 |
||
|
14
|
14
51615-KRN-A30ZA Cvr, fr. *tnatural* |
51615-KRN-A30ZA |
from US $38.31 |
||
|
15
|
15
90105-MAC-680 Bolt, disk (6x19) |
90105-MAC-680 |
from US $1.35 |
||
|
16
|
16
90114-MAC-780 Bolt, fr. disk cover |
90114-MAC-780 |
from US $1.35 |
||
|
17
|
17
90301-KZ4-J40 Nut, fr. axle |
90301-KZ4-J40 |
from US $17.95 |
||
|
18
|
18
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $4.74 |
||
|
19
|
19
91062-MAC-681 Bearing (6904) |
91062-MAC-681 |
from US $10.88 |
||
|
20
|
20
91201-KS6-004 Oil seal (26x37x7) |
91201-KS6-004 |
from US $8.24 |
||
|
21
|
21
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
22
|
22
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
