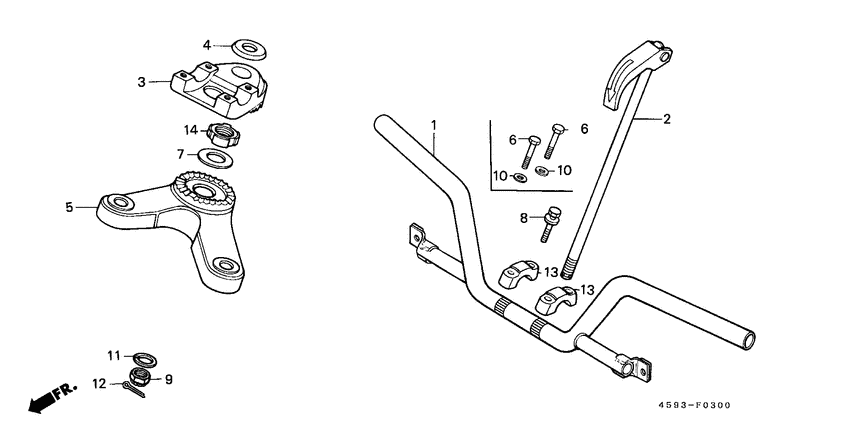

Handle pipe/top bridge (1) Diagram Honda CT110
- Year
- 1982
- Model code
- CT110C
- Sales region
- Canada
- Frame
- JH2JD010*CS200731 - JH2JD010*CS206910
- Engine Capacity
- 110
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53100-459-770
Handlebar
|
53100-459-770 |
— | ||
|
2
|
2
53130-102-700
Lever, handle clamp
|
53130-102-700 |
— | ||
|
3
|
3
53132-102-000
Hldr, handle (lower)
|
53132-102-000 |
— | ||
|
4
|
4
53133-102-000
Washer
|
53133-102-000 |
— | ||
|
5
|
5
53231-102-000
Plate
|
53231-102-000 |
— | ||
|
6
|
6
90117-065-000 Bolt hex 6x28 |
90117-065-000 |
from US $2.96 |
||
|
7
|
7
90503-051-870 Washer |
90503-051-870 |
from US $3.18 |
||
|
9
|
9
94012-140-000-S Nut,castle,14mm |
94012-140-000-S |
US $1.33 |
||
|
10
|
10
94101-06000 WasherPLAIN, 6MM |
94101-06000 |
from US $0.37 |
||
| replacement | |||||
|
10
|
10
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
11
|
11
94111-14000
Spg-washer 14mm
|
94111-14000 |
— | ||
|
12
|
12
9420130280 Pin, split, 3.0x28 |
9420130280 |
from US $0.44 |
||
|
13
|
13
95014-21100 Holder a,upper |
95014-21100 |
from US $4.74 |
||
| replacement | |||||
|
13
|
13
95014-21101 Holder a1, handlebar |
95014-21101 |
from US $4.44 |
||
|
14
|
14
95020-13100 Nut,c.stem |
95020-13100 |
US $2.07 |
||
