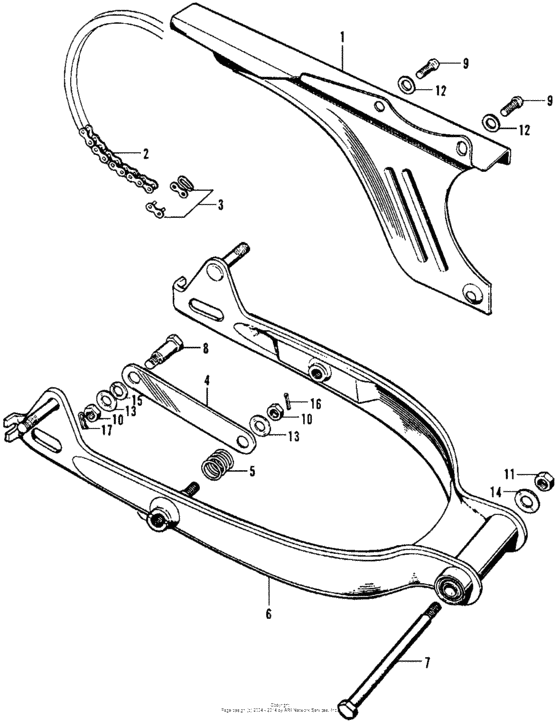

Chain case + swingarm Diagram Honda CT70
- Model code
- CT70 A
- Sales region
- USA
- Frame
- CT70100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-098-000ZC Case,chain*nh-1* |
40510-098-000ZC |
US $47.06 |
||
|
2
|
2
405W3-GB2-505
Chain, drive
|
405W3-GB2-505 |
— | ||
|
3
|
3
40531-098-003 Master link |
40531-098-003 |
from US $4.29 |
||
|
4
|
4
43431-124-740 Link,rear brake |
43431-124-740 |
US $7.25 |
||
|
5
|
5
43434-250-000 Spring |
43434-250-000 |
from US $2.59 |
||
|
6
|
6
52100-098-670-Z Fork comp,rear |
52100-098-670-Z |
US $492.80 |
||
|
7
|
7
90121-098-970 Bolt,rr.forkpivot |
90121-098-970 |
US $7.70 |
||
|
8
|
8
90127-400-000 Bolt,brake stop. |
90127-400-000 |
from US $7.99 |
||
|
9
|
9
9350006010 Screw, pan, 6x10 |
9350006010 |
from US $0.44 |
||
| replacement | |||||
|
9
|
9
93500-060100A Screw, pan, 6x10 |
93500-060100A |
from US $0.44 |
||
|
10
|
10
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
11
|
11
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
12
|
12
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
13
|
13
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
14
|
14
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
15
|
15
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
16
|
16
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
17
|
17
94251-08000 PinLOCK, 8MM |
94251-08000 |
from US $0.59 |
||
