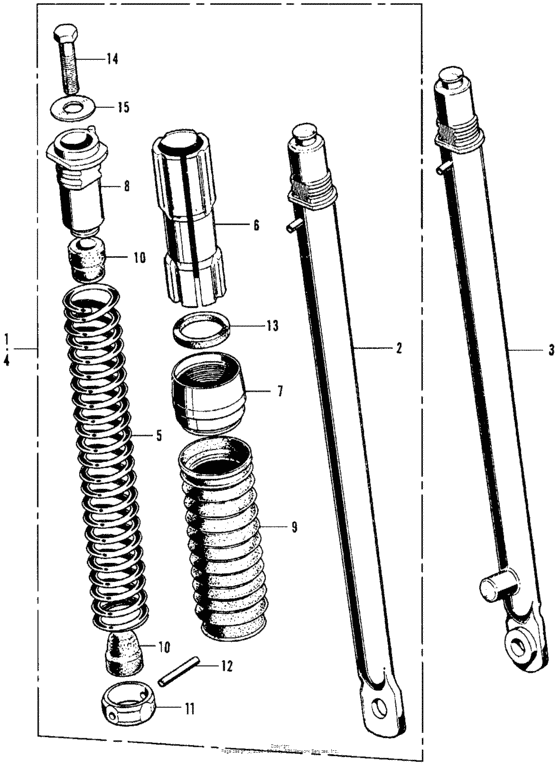

Front fork Diagram Honda CT70
- Model code
- CT70 A
- Sales region
- USA
- Frame
- CT70100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-098-671
Cushion,r,front
|
51400-098-671 |
— | ||
|
2
|
2
51450-098-670
Half,slide,pipe
|
51450-098-670 |
— | ||
|
3
|
3
51460-098-670
Half.slide pipe
|
51460-098-670 |
— | ||
|
4
|
4
51500-098-671
Cushion,l,front
|
51500-098-671 |
— | ||
|
5
|
5
51501-064-691
Spring,fr cushion
|
51501-064-691 |
— | ||
|
6
|
6
51502-045-670 Guide, fr. fork pipe |
51502-045-670 |
from US $10.51 |
||
|
7
|
7
51503-064-010
Cap,fork guide
Use up to Frame SN 100001 |
51503-064-010 |
— | ||
| replacement | |||||
|
7
|
7
51503-098-000 Cap,forkpipeguideUse up to Frame SN 100001 |
51503-098-000 |
US $20.54 |
||
|
7
|
7
51503-098-000 Cap,forkpipeguideUse up to Frame SN 100001 |
51503-098-000 |
US $20.54 |
||
|
8
|
8
51504-098-300
Holder,upper
|
51504-098-300 |
— | ||
|
9
|
9
51505-064-010-B Boot,front fork |
51505-064-010-B |
from US $13.71 |
||
|
10
|
10
51506-064-020 Rubber, fr |
51506-064-020 |
from US $4.56 |
||
|
11
|
11
51507-098-000 Piston, slide pipe |
51507-098-000 |
from US $8.24 |
||
|
12
|
12
51526-098-000 Pin, spring |
51526-098-000 |
from US $3.34 |
||
|
13
|
13
90755-064-013 Oil seal |
90755-064-013 |
from US $6.81 |
||
|
14
|
14
93201-100-400-B Bolt, hex. (10x40) |
93201-100-400-B |
from US $0.96 |
||
|
15
|
15
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
