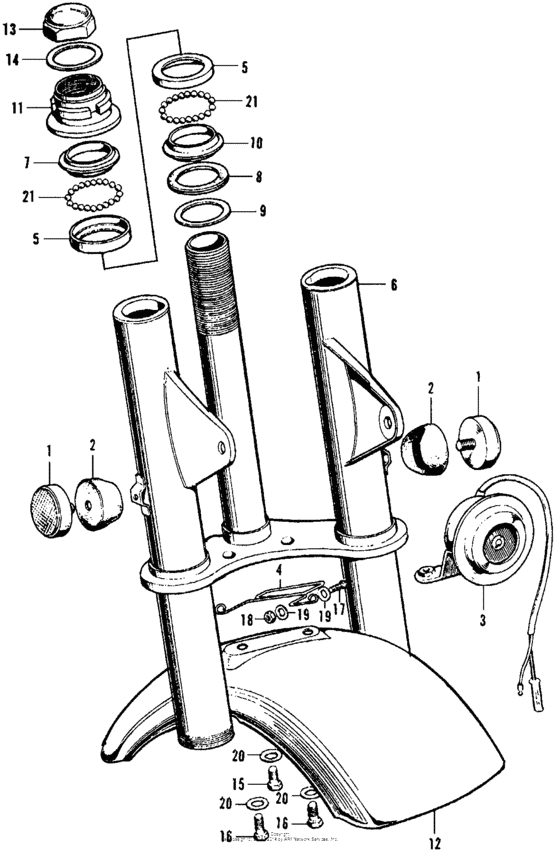

Front fork + front fender Diagram Honda CT70
- Model code
- CT70 A
- Sales region
- USA
- Frame
- CT70100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-315-000 Reflexreflector |
33741-315-000 |
from US $27.06 |
||
|
2
|
2
33744-045-670 Base,refrector |
33744-045-670 |
US $7.40 |
||
|
3
|
3
38100-124-721 Horn assy |
38100-124-721 |
US $47.06 |
||
|
4
|
4
45465-098-670 Crip,wire,brake |
45465-098-670 |
from US $3.70 |
||
|
5
|
5
50301-041-010 Race |
50301-041-010 |
from US $7.70 |
||
|
6
|
6
51510-098-670-Z
Fork, fr.
|
51510-098-670-Z |
— | ||
|
7
|
7
53211-028-010 Race, steering cone |
53211-028-010 |
from US $7.55 |
||
|
8
|
8
53214-001-010 Dust seal |
53214-001-010 |
from US $2.44 |
||
| replacement | |||||
|
8
|
8
53214-GJG-C20 DUST SEAL |
53214-GJG-C20 |
from US $2.69 |
||
|
9
|
9
53215-001-000 Washer |
53215-001-000 |
from US $1.92 |
||
|
10
|
10
53212-030-010 Race, steering cone |
53212-030-010 |
from US $7.40 |
||
|
11
|
11
53220-098-670 Thread |
53220-098-670 |
from US $10.21 |
||
|
12
|
12
61100-098-970XW
Fender,front
|
61100-098-970XW |
— | ||
|
13
|
13
90304-159-000 Nut, steering stem |
90304-159-000 |
from US $6.22 |
||
|
14
|
14
90503-051-870 Washer |
90503-051-870 |
from US $3.18 |
||
|
15
|
15
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
16
|
16
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
17
|
17
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
18
|
18
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
|
19
|
19
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
20
|
20
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
21
|
21
96211-06000 BallSTEEL, #6(3/16) |
96211-06000 |
from US $0.15 |
||
