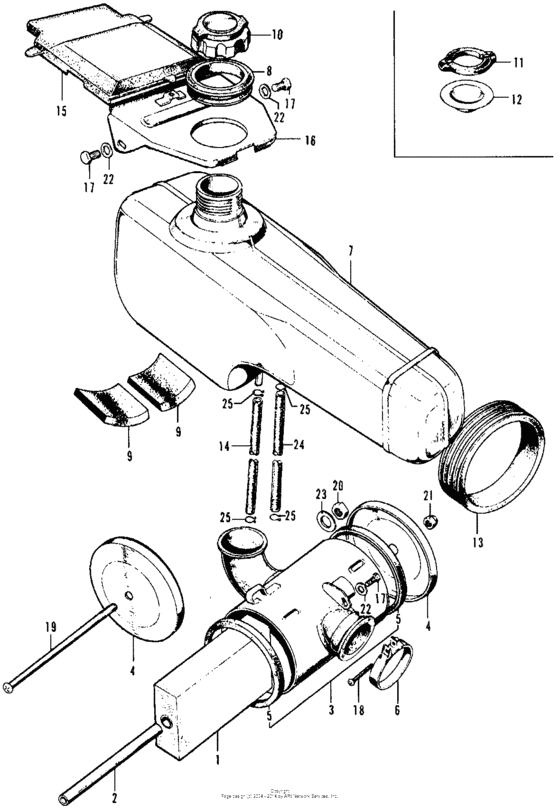

Fuel tank + air cleaner Diagram Honda CT70
- Model code
- CT70 A
- Sales region
- USA
- Frame
- CT70100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17211-118-000 Element,cleaner |
17211-118-000 |
from US $11.40 |
||
|
2
|
2
17212-045-000
Pipe,cleanerinner
|
17212-045-000 |
— | ||
|
3
|
3
17221-098-010-B Case,air,cleanerUse up to Frame SN 108375 |
17221-098-010-B |
US $49.57 |
||
|
4
|
4
17231-045-030 Cover,case |
17231-045-030 |
from US $11.40 |
||
|
5
|
5
17252-045-300 Packing cleaner |
17252-045-300 |
US $4.29 |
||
|
6
|
6
16223-GBF-830 Band, insulator |
16223-GBF-830 |
from US $6.66 |
||
|
7
|
7
17500-098-305
Tank set,fuel
|
17500-098-305 |
— | ||
|
8
|
8
17512-098-000
Packing,fillernec
|
17512-098-000 |
— | ||
|
9
|
9
17611-098-300
Long,cushion
|
17611-098-300 |
— | ||
|
10
|
10
17620-098-010 Assy,cap fuel |
17620-098-010 |
from US $14.36 |
||
|
11
|
11
17623-098-010
Rubber,breather
|
17623-098-010 |
— | ||
|
12
|
12
17624-896-750
Packing, fuel cap
|
17624-896-750 |
— | ||
|
13
|
13
17670-098-000
Band tank
|
17670-098-000 |
— | ||
|
14
|
14
17681-098-010
Tube,fuel reserve
Use up to Frame SN 242074 |
17681-098-010 |
— | ||
|
15
|
15
50661-098-010ZA Lid,frame b*nh-1* |
50661-098-010ZA |
from US $17.14 |
||
|
16
|
16
50665-098-020-B
Lid,tank
|
50665-098-020-B |
— | ||
|
17
|
17
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
18
|
18
93500-040-250-A Screw, pan, 4x25 |
93500-040-250-A |
from US $0.37 |
||
|
19
|
19
93500-061-351-B Screw,pan,6x135 |
93500-061-351-B |
from US $1.63 |
||
|
20
|
20
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
21
|
21
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
22
|
22
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
23
|
23
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
24
|
24
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
25
|
25
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
25
|
25
95002-50000 ClipTUBE(C9) |
95002-50000 |
from US $0.37 |
