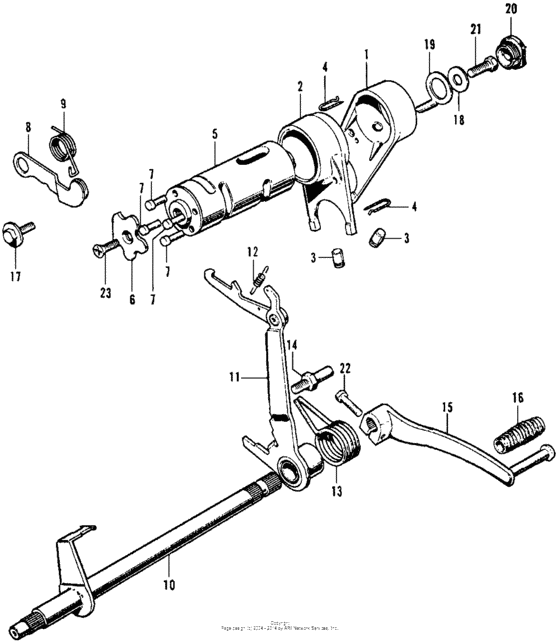

Gearshift drum Diagram Honda CT70
- Model code
- CT70 A
- Sales region
- USA
- Frame
- CT70100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-087-303
Fork,l gear shift
Use up to Engine SN 226904 |
24211-087-303 |
— | ||
|
1
|
1
24211-087-010 Fork, l. gearshiftUse from Engine SN 226905 |
24211-087-010 |
from US $55.35 |
||
|
2
|
2
24221-041-010 Fork, r. gearshift |
24221-041-010 |
from US $55.35 |
||
|
3
|
3
24261-028-010 Pin, shift fork |
24261-028-010 |
US $3.37 |
||
| replacement | |||||
|
3
|
3
24261-121-742 Pin |
24261-121-742 |
from US $2.22 |
||
|
3
|
3
24261-121-740 Pin |
24261-121-740 |
from US $2.22 |
||
| replacement | |||||
|
3
|
3
24261-121-742 Pin |
24261-121-742 |
from US $2.22 |
||
|
3
|
3
24261-121-742 Pin |
24261-121-742 |
from US $2.22 |
||
|
4
|
4
24263-028-000 Clip |
24263-028-000 |
from US $2.15 |
||
|
5
|
5
24301-045-672 Drum,gearshift |
24301-045-672 |
US $60.91 |
||
| replacement | |||||
|
5
|
5
24301-045-673
Drum, gearshift
|
24301-045-673 |
— | ||
|
5
|
5
24301-045-673
Drum, gearshift
|
24301-045-673 |
— | ||
|
6
|
6
24411-041-020
Plate,drum ,shift
|
24411-041-020 |
— | ||
|
7
|
7
24421-041-000 Pin, gearshift drum |
24421-041-000 |
from US $2.22 |
||
|
8
|
8
24430-041-010 Stpr.,shift drum |
24430-041-010 |
from US $9.62 |
||
|
9
|
9
24435-GB2-710
Spring shift.
|
24435-GB2-710 |
— | ||
|
10
|
10
24610-098-730 Spindle, gearshift |
24610-098-730 |
from US $66.64 |
||
|
11
|
11
24630-086-030 Arm comp.,gear sh |
24630-086-030 |
from US $20.66 |
||
|
12
|
12
24641-041-000 Spring |
24641-041-000 |
from US $2.87 |
||
|
13
|
13
24651-041-000 Spring |
24651-041-000 |
from US $3.92 |
||
|
14
|
14
24652-035-000 Pin |
24652-035-000 |
from US $4.04 |
||
|
15
|
15
24700-098-970
Pedal,gear change
|
24700-098-970 |
— | ||
|
16
|
16
9501140000 Rubber, shift pedal |
9501140000 |
from US $0.74 |
||
|
17
|
17
90023-041-010 Bolt |
90023-041-010 |
from US $3.23 |
||
|
18
|
18
90417-041-000 Washer, gearshift drum side |
90417-041-000 |
from US $2.59 |
||
|
19
|
19
90484-045-010 Washer (13.2mm) |
90484-045-010 |
from US $3.70 |
||
|
20
|
20
90801-035-000 Plug, rubber (19mm) |
90801-035-000 |
from US $2.22 |
||
|
21
|
21
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
22
|
22
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
23
|
23
93600-060-160-A ScrewFLAT, 6X16 |
93600-060-160-A |
from US $0.44 |
||
