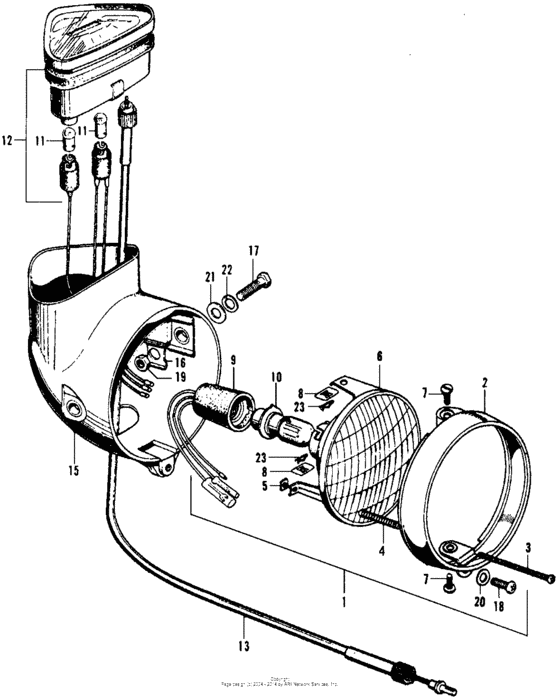

Headlight + speedometer Diagram Honda CT70
- Model code
- CT70 A
- Sales region
- USA
- Frame
- CT70100001 -
- Engine Capacity
- 70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-089-671
Light,head
|
33100-089-671 |
— | ||
|
2
|
2
33101-028-672
Rim, head light
|
33101-028-672 |
— | ||
|
3
|
3
33102-041-003 Screw,head light |
33102-041-003 |
from US $3.23 |
||
|
4
|
4
33107-030-003 Spring |
33107-030-003 |
from US $3.67 |
||
|
5
|
5
33117-041-003 Nut, beam adj. |
33117-041-003 |
from US $2.81 |
||
|
6
|
6
33120-089-671
Unit,head light
|
33120-089-671 |
— | ||
|
7
|
7
33125-292-670
Screw,unit holder
|
33125-292-670 |
— | ||
|
8
|
8
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
9
|
9
33130-028-671
Socket,head light
|
33130-028-671 |
— | ||
|
10
|
10
34901-001-025 Bulb, headlight |
34901-001-025 |
from US $6.51 |
||
|
11
|
11
34908-230-000 Bulb,speedometer |
34908-230-000 |
from US $2.74 |
||
|
12
|
12
37200-098-671
Speedometer assy
|
37200-098-671 |
— | ||
|
13
|
13
44830-126-651 Cable, speedometer |
44830-126-651 |
US $42.98 |
||
|
15
|
15
61301-056-672ZA Case,lt.*r-4c* |
61301-056-672ZA |
US $39.30 |
||
|
15
|
15
61301-056-672ZQ
Case,lt.*pb-3c*
|
61301-056-672ZQ |
— | ||
|
15
|
15
61301-056-672ZR
Case,lt.*y-2c*
|
61301-056-672ZR |
— | ||
|
16
|
16
61303-229-000 Washer,light case |
61303-229-000 |
from US $2.66 |
||
|
17
|
17
92101-08025-0B Bolt,hex.,8x25 |
92101-08025-0B |
from US $0.81 |
||
|
18
|
18
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
19
|
19
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
20
|
20
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
21
|
21
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
22
|
22
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
23
|
23
9425105000 Pin, lock, 5mm |
9425105000 |
from US $0.44 |
